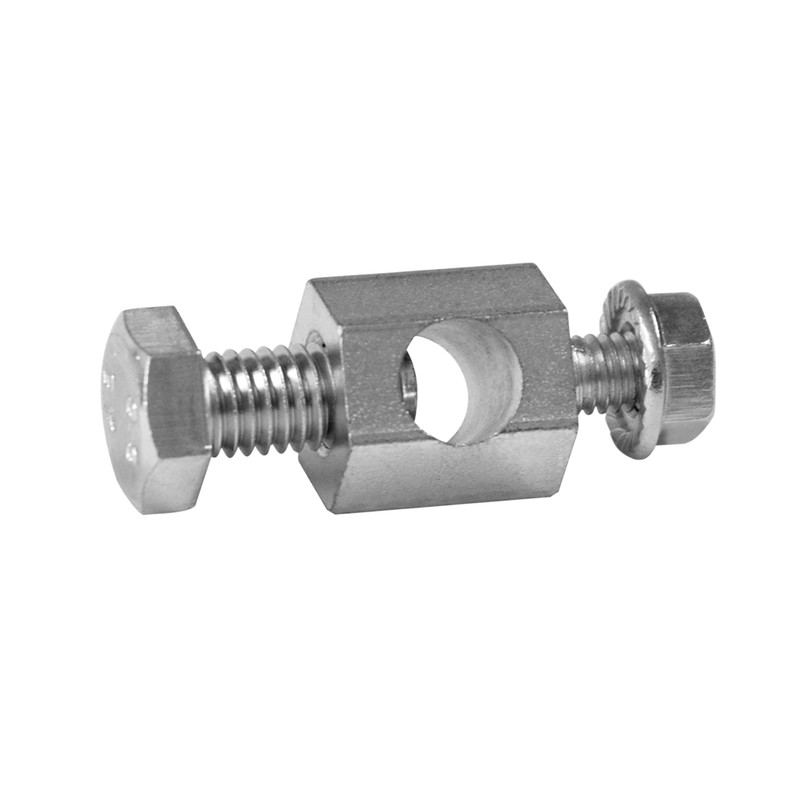

CONNECTING BOLTS 10 MP-839R
Product code
1467511
Potential equalization screw

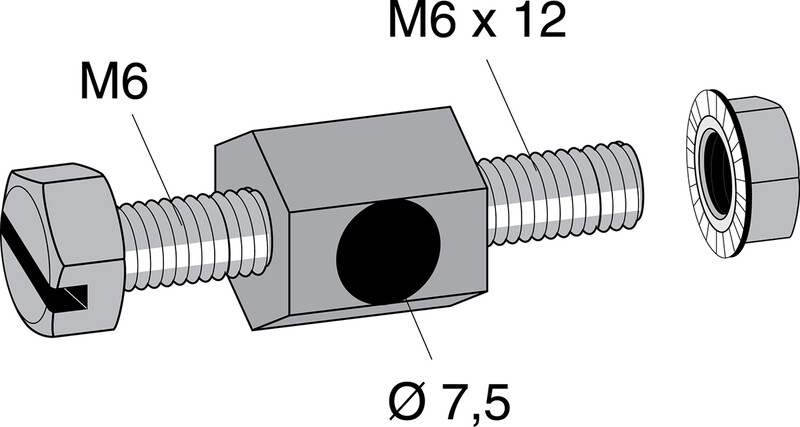

two functions: acts as a belt tensioning screw (M5x20 mm) and as a connection screw for conductors up to 16 mm² in a 6 mm hole. Sold in packs of 10. M6x12 and M8x16 fit most holes in our products, enabling potential equalization connection to our mounting parts. The hole for the potential conductor (Ø7.5 mm) allows for conductors up to 25 mm². Sold in packs of 10. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Earth terminal clamp (EC000491)
Suitable forRound conductor
Connection cross section6 - 25 mm²
Clamping range round conductor3 - 7.5 mm
MaterialStainless steel
Surface protectionOther
Product codes
SAPANL415
STK1467511
PLC1467511
GTIN/EAN7394333035369
Manufacturer part numberMP-839R
Vendor material number1467511
Basic information
Package measurements (L x W x H)160 x 110 x 30 mm
Package volume0.528 l
Package weight0.28 kg
Package units1 / 10
Package contents10 each
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
