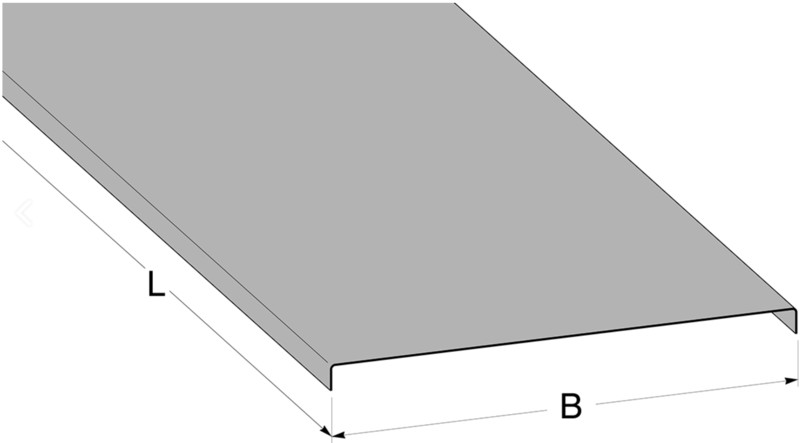

COVER FOR CABLE SUPPORT 400 MM
Product code
1406827
The new Z4 (Zn 95% Al 5%) cable tray cover exceeds the performance of up to 85 µm galvanized covers.
Installed using separately ordered mounting brackets.
For wire racks: 14 672 58.
For plate racks and FZ cable trays: 14 671 36.
For cable trays (non-FZ): 14 671 37. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cover for cable support system (EC002403)
Cover width400 mm
Material thickness1 mm
Suitable for cable trayno
Suitable for wire mesh trayno
Suitable for cable ladderyes
Length2000 mm
Type of fasteningCover clamp
Suitable for circuit integrityyes
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Surface protectionContinuously galvanised zinc-aluminium
Operating temperature-40-120 °C
ColourZinc
RAL-number0
Product codes
SAPCLJ748
STK1406827
PLC1406827
GTIN/EAN7394333111643
Manufacturer part numberMP-460Z4
Vendor material number1406827
Basic information
Package measurements (L x W x H)1000 x 400 x 10 mm
Package volume8 l
Package weight1.675 kg
Base unitMeter
Package units2 / 4 / 40
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (7)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.489
GWP, unitMeter
Source for GWP dataEPD
