COVER FOR CABLE SUPPORT 500 MM
Product code
1406828
The new Z4 (Zn 95% Al 5%) cable tray cover exceeds the performance of up to 85 µm galvanized covers.
Installed using separately ordered mounting brackets.
For wire racks: 14 672 58.
For plate racks and FZ cable trays: 14 671 36.
For cable trays (non-FZ): 14 671 37. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cover for cable support system (EC002403)

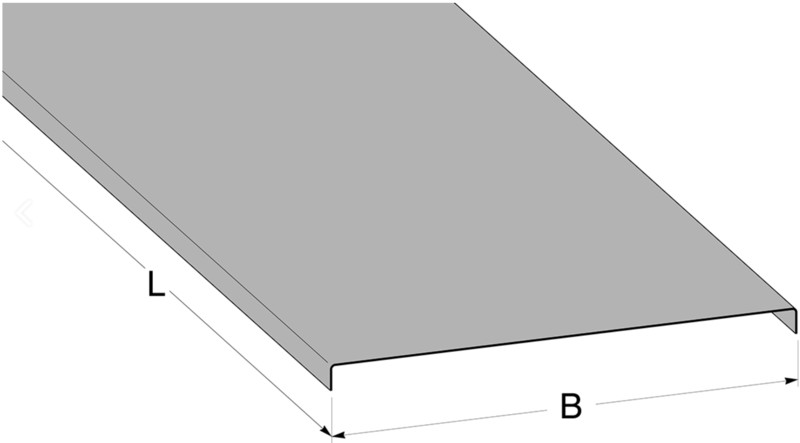

Cover width500 mm
Material thickness1 mm
Suitable for cable trayno
Suitable for wire mesh trayno
Suitable for cable ladderyes
Length2000 mm
Type of fasteningCover clamp
Suitable for circuit integrityyes
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Surface protectionContinuously galvanised zinc-aluminium
Operating temperature-40 - 120 °C
ColourZinc
RAL-number0
Product codes
SAPCLJ747
STK1406828
PLC1406828
GTIN/EAN7394333119281
Manufacturer part numberMP-470Z4
Vendor material number1406828
Basic information
Package measurements (L x W x H)1000 x 500 x 10 mm
Package volume10 l
Package weight2.05 kg
Base unitMeter
Package units2 / 4 / 40
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
