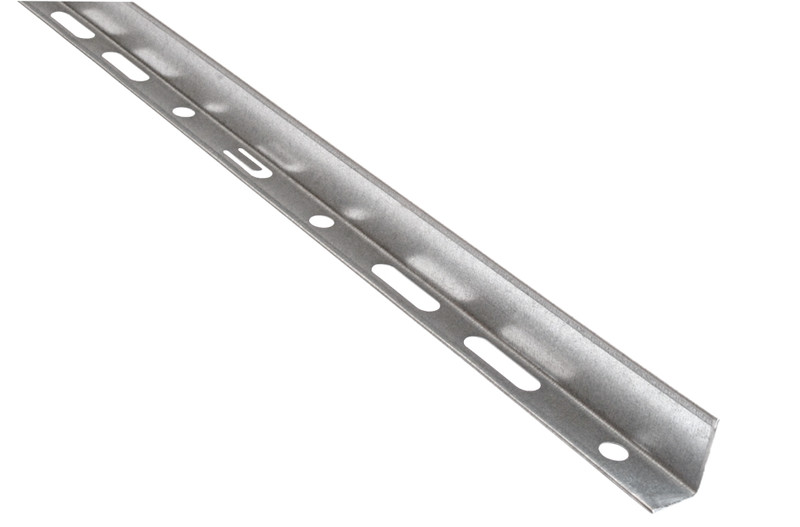

DIVIDER H=40 MM MP-148S DIVIDER H=40 MM
Product code
1467692
Separation plate

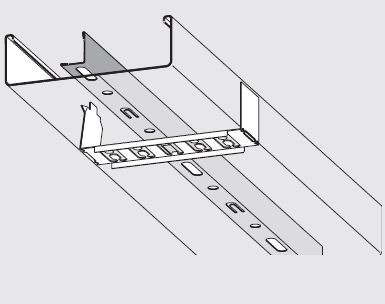

A separation plate can be used to divide cable space, for example, into weak and strong current cable areas. It can be locked to a shelf using cable tie supports. Two cable tie supports are sufficient for a separation plate that is freely positioned between two extension pieces. For a continuous length, use one support per 1.5 meters. The separation plate extension piece enables a continuous channel over shelf extension pieces/central supports. This product description is an automated translation of the original Finnish description.
A separation plate can be used to divide cable space, for example, into weak and strong current cable areas. It can be locked to a shelf using cable tie supports. Two cable tie supports are sufficient for a separation plate that is freely positioned between two extension pieces. For a continuous length, use one support per 1.5 meters. The separation plate extension piece enables a continuous channel over shelf extension pieces/central supports. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Separation plate for cable support system (EC001000)
Partition height25 mm
Length1750 mm
ModelL-profile
Mounting perforationyes
Type of fasteningScrewable
Suitable for wire mesh trayno
Suitable for cable ladderyes
Suitable for cable trayno
Suitable for circuit integrityyes
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Surface protectionContinuously galvanised
ColourZinc
RAL-number0
Product codes
SAPANL554
STK1467692
PLC1467692
GTIN/EAN7394333141565
Manufacturer part numberMP-148S
Vendor material number1467692
Basic information
Package measurements (L x W x H)1750 x 19 x 40 mm
Package volume1.33 l
Package weight0.54 kg
Base uniteach
Package units1 / 10 / 20
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1453
GWP, uniteach
Source for GWP dataEPD
