FIXING ACCESSORY MP-731S
Product code
1467237

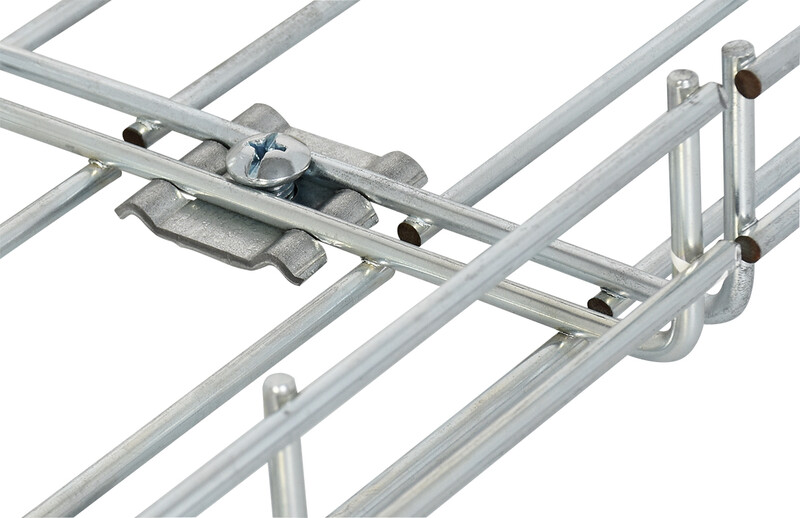

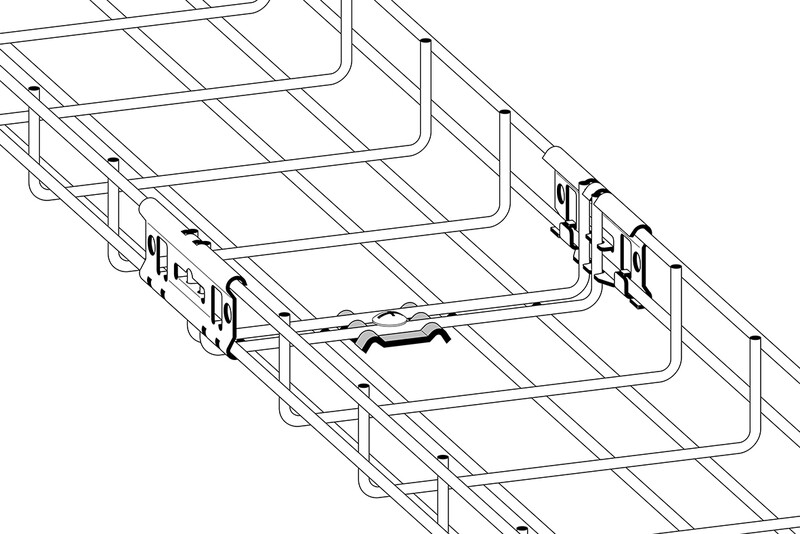

For attaching to cable trays, locking wall and corner mounts, and for installing a support connection at the bottom of the cable tray (300-600 mm) to reinforce the connection. Also functions as mounting brackets for cable trays (excluding FZ series). Attached with the screw nut set MP-937E (14 673 41). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mounting material for cable support system (EC001005)
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Surface protectionGalvanic/electrolytic zinc plated and coated
ColourZinc
RAL-number0
Product codes
SAPAIQ075
STK1467237
PLC1467237
GTIN/EAN7394333053851
Manufacturer part numberMP-731S
Vendor material number1467237
Basic information
Package measurements (L x W x H)40 x 40 x 5 mm
Package volume0.008 l
Package weight0.025 kg
Base uniteach
Package units1 / 10 / 100
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0067
GWP, uniteach
Source for GWP dataEPD
