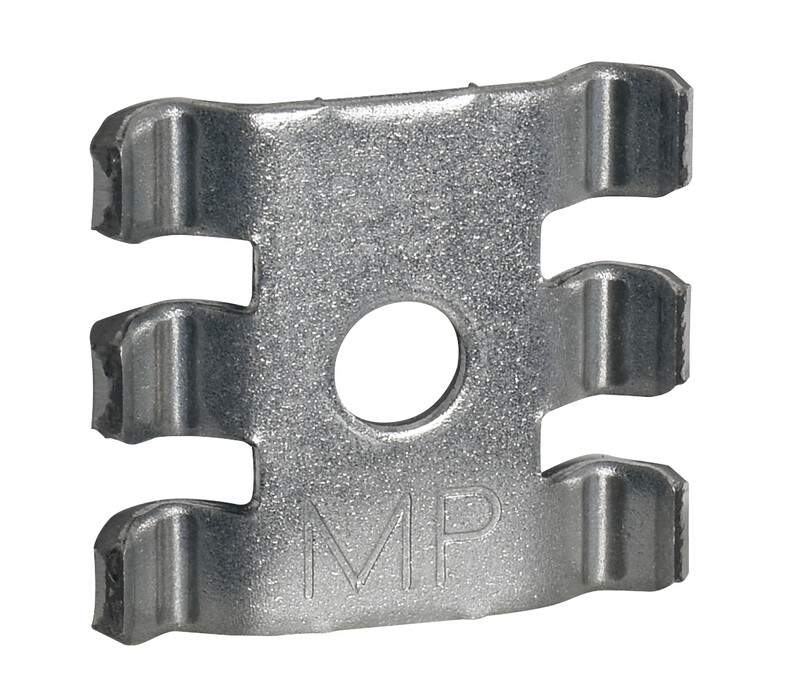

FIXING ACCESSORY MP-731Z4 WIRE MESH TRAY
Product code
1468893

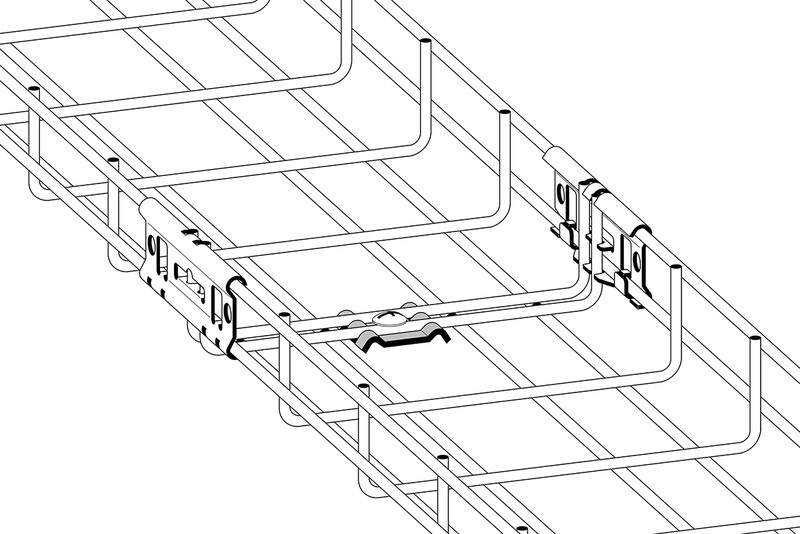

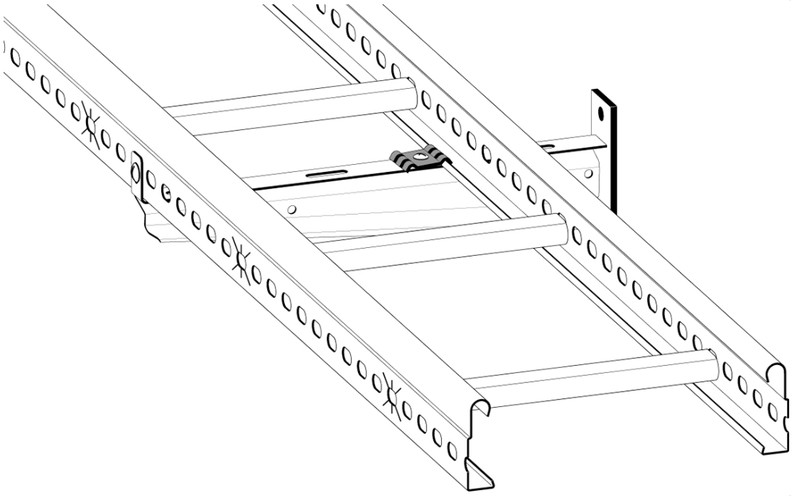

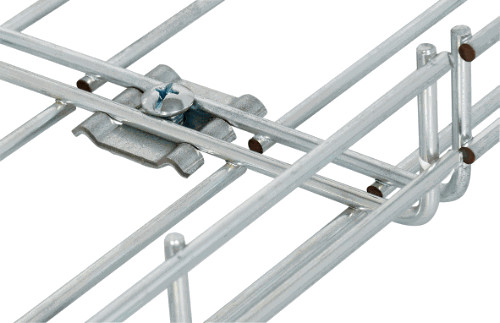

For attaching to cable trays, locking wall and corner brackets, and for installing a support connection at the bottom of the cable tray (300-600 mm) to reinforce it. Also functions as mounting brackets for cable trays (except FZ series). Attached using the screw nut set MP-937Z (14 673 42) or MP-295R (14 675 05). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mounting material for cable support system (EC001005)
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Surface protectionOther
ColourZinc
RAL-number0
Product codes
SAPCDN866
STK1468893
PLC1468893
GTIN/EAN7394333053875
Manufacturer part numberMP-731Z4
Vendor material number1468893
Basic information
Package measurements (L x W x H)42 x 38 x 3 mm
Package volume0.005 l
Package weight0.02 kg
Base uniteach
Package units1 / 10 / 200
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (8)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0536
GWP, uniteach
Source for GWP dataEPD
