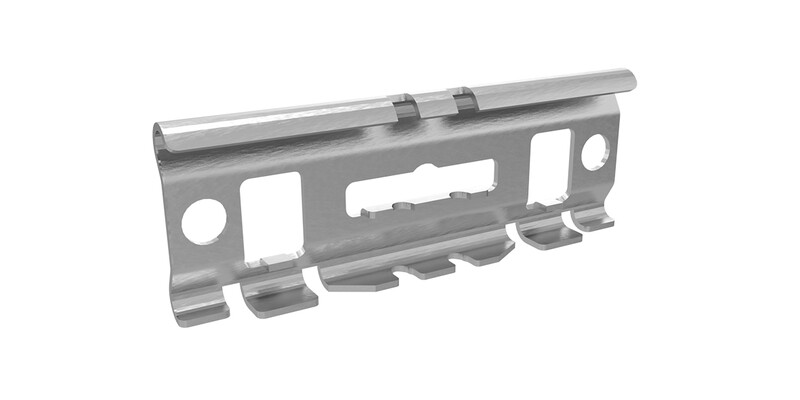

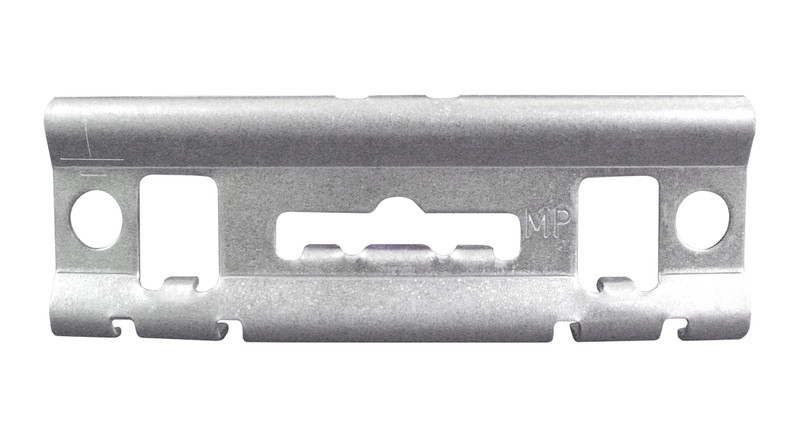

JOINT, WIRE MESH TRAY MP-730S JOINT, WIRE MESH TRAY
Product code
1467234
Extension

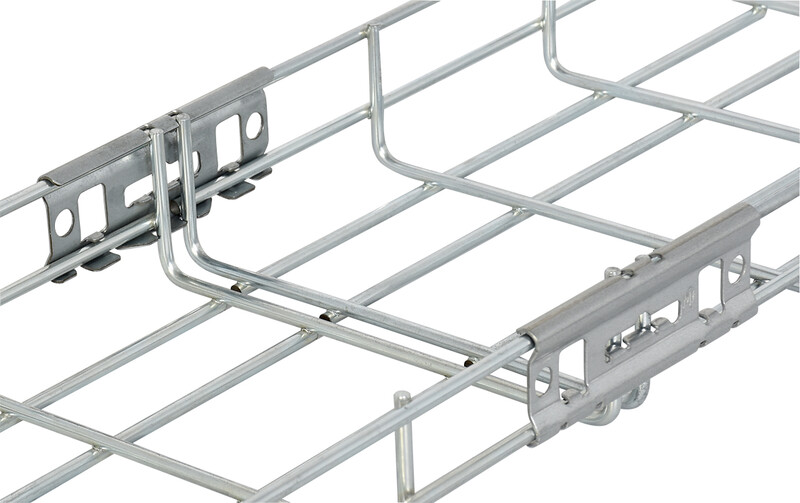

The extension is placed on the side of the shelf, after which the locking tongues on the MP-730 S and MP-730 R shelves are bent up with pliers, no screws are required. It can additionally be locked with mounting screws. The MP-730 Z comes with a universal clamp and a screw set. This product description is an automated translation of the original Finnish description.
The extension is placed on the side of the shelf, after which the locking tongues on the MP-730 S and MP-730 R shelves are bent up with pliers, no screws are required. It can additionally be locked with mounting screws. The MP-730 Z comes with a universal clamp and a screw set. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Connector for cable support system (EC002413)
ModelLongitudinal joint
Hinged joint horizontalyes
Hinged joint verticalno
Type of connectionScrewless connector
Suitable for wire mesh trayyes
Suitable for cable ladderno
Suitable for cable trayno
Suitable for cable support system width55-600 mm
Suitable for cable support system height58-58 mm
Suitable for wire mesh tray filament4 - 6 mm
Length110 mm
Suitable for circuit integrityyes
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Product codes
SAPAIM544
STK1467234
PLC1467234
GTIN/EAN7394333052755
Manufacturer part numberMP-730S
Vendor material number1467234
Basic information
Package measurements (L x W x H)110 x 40 x 10 mm
Package volume0.044 l
Package weight0.055 kg
Base uniteach
Package units1 / 10 / 300
Package contents–
UNSPSC39131703
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0148
GWP, uniteach
Source for GWP dataEPD
