LIGHTING CHANNEL 3 M MP-311V 75V 75MM 3M
Product code
1467106

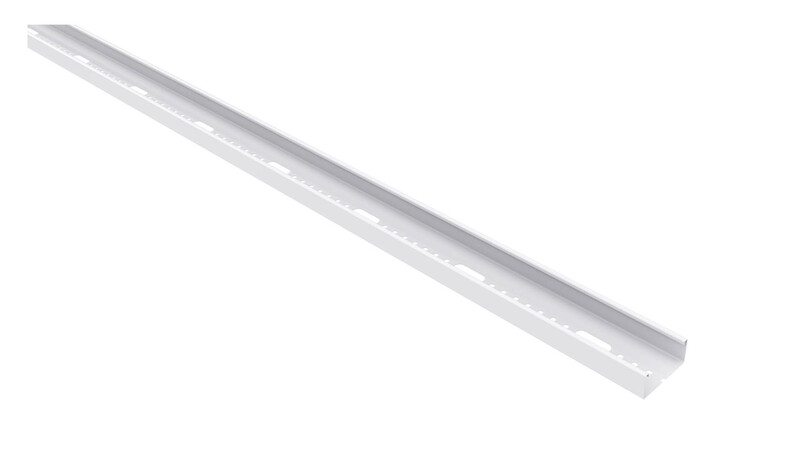

Enston's light rail product range covers five different widths between 50 and 200 mm. They can be ordered in 3 m and 6 m lengths with various surface finish options. The material is 1 mm steel. Standard colors are white, galvanized, and black. Other colors available on request. Painting is applied over self-healing galvanization, so cut points on site do not need protection. The mounting components for the light rails are compatible with Enston's steel cable tray system products, speeding up installation and reducing part waste. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable tray (EC000047)

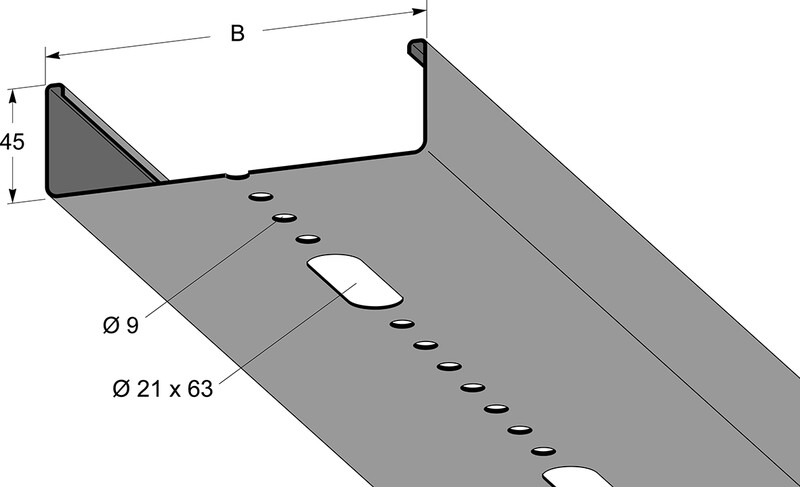

Height45 mm
Width75 mm
Material thickness1 mm
Length3000 mm
Usable cross section3300 mm²
With coverno
Side perforationno
Bottom perforationyes
NATO-mounting holesno
ModelWithout connector
Type of connectionOther
Suitable for circuit integrityno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised and coated
Product codes
SAPANM087
STK1467106
PLC1467106
GTIN/EAN7394333103389
Manufacturer part numberMP-311V
Vendor material number1467106
Basic information
Package measurements (L x W x H)1000 x 75 x 45 mm
Package volume3.375 l
Package weight1.393 kg
Base unitMeter
Package units3 / 18 / 270
Package contents–
UNSPSC31162309
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.7193
GWP, unitMeter
Source for GWP dataEPD
