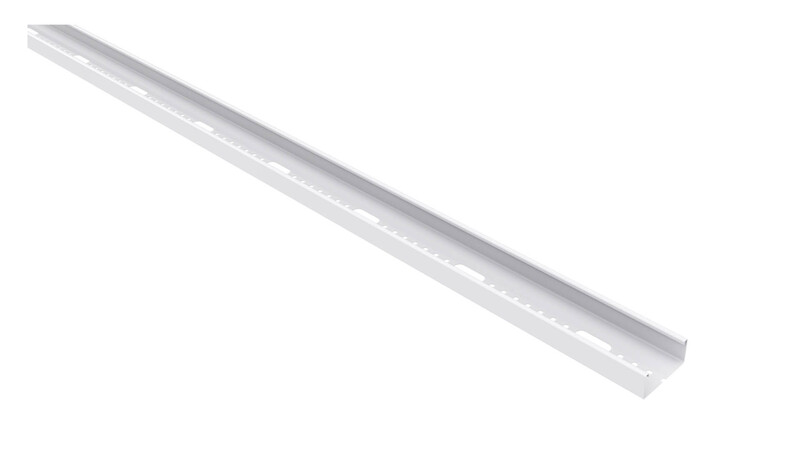

LIGHTING CHANNEL 3 M MP-321V 100V 100MM 3M

Product code
1467113
Enston's light rail product range covers five different widths between 50 and 200 mm. They can be ordered in 3 m and 6 m lengths with various surface finish options. The material is 1 mm steel. Standard colors are white, galvanized, and black. Other colors available on request. Painting is applied over self-healing galvanization, so cut points on site do not need protection. The mounting components for the light rails are compatible with Enston's steel cable tray system products, speeding up installation and reducing part waste. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Cable tray (EC000047)
Height45 mm
Width100 mm
Material thickness100 mm
Length3000 mm
Working length3000 mm
Usable cross section4400 mm²
With coverno
Side perforationno
Bottom perforationyes
NATO-mounting holesno
ModelWithout connector
Type of connectionOther
Suitable for circuit integrityno
MaterialSteel
Material qualityOther

Product codes

SAPANM092
STK1467113
PLC1467113
GTIN/EAN7394333103969
Manufacturer part numberMP-321V
Vendor material number1467113

Basic information

Package measurements (L x W x H)1000 x 100 x 45 mm
Package volume4.5 l
Package weight1.59 kg
Base unitMeter
Package units3 / 18 / 162
Package contents
UNSPSC31162309
BrandMP BOLAGEN
VendorMP BOLAGEN OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)4.2453
GWP, unitMeter
Source for GWP dataEPD
