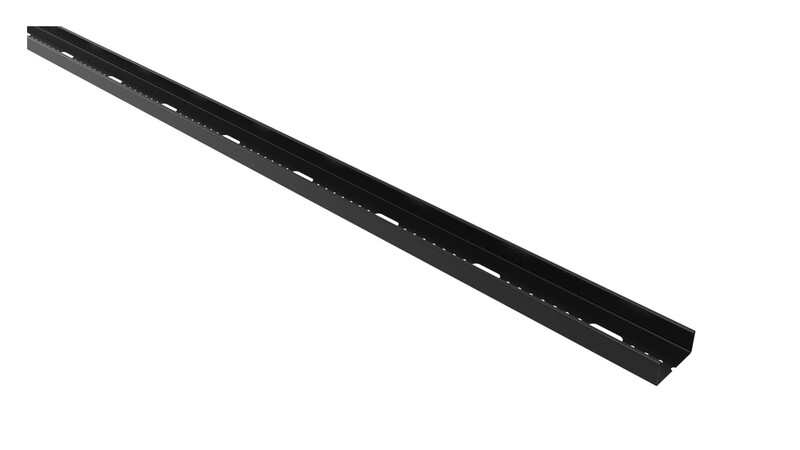

LIGHTING TRUNKING 311SV C2 FE 75X45X3000 BLK
Product code
1406874
The range consists of 50 to 200 mm wide and 3 or 6 meter long lighting suspension rails with C2 or C4 environmental suitability options for surface finishes. All versions are galvanized so that cut edges self-heal. Compatibility with MP mounting components speeds up installation and reduces material waste on site. The lighting rails can be powder coated to any desired color at an additional cost. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable tray (EC000047)
Height45 mm
Width75 mm
Material thickness1 mm
Length3000 mm
Working length3000 mm
Usable cross section3300 mm²
With coverno
Side perforationno
Bottom perforationyes
NATO-mounting holesno
ModelWithout connector
Type of connectionOther
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Product codes
SAPDAN762
STK1406874
PLC1406874
GTIN/EAN7394333103402
Manufacturer part number1363309
Vendor material number1406874
Basic information
Package measurements (L x W x H)1000 x 75 x 45 mm
Package volume3.375 l
Package weight1.393 kg
Base unitMeter
Package units18 / 450
Package contents–
UNSPSC39131704
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.7193
GWP, unitMeter
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
