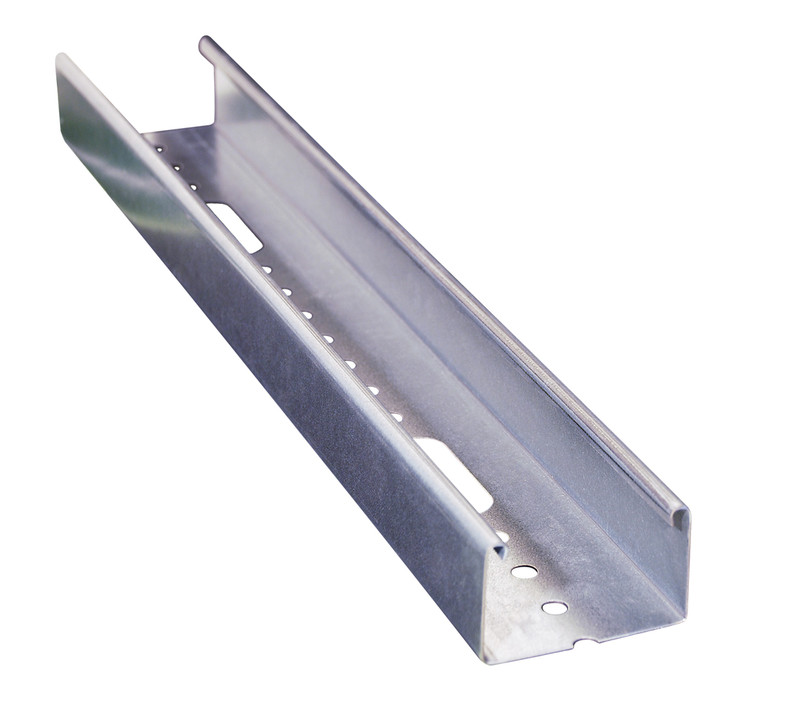

LIGHTING TRUNKING MP-321S6 100S 6M
Product code
1467577
Enston's light rail product range covers five different widths between 50 and 200 mm. They can be ordered in 3 m and 6 m lengths with various surface finish options. The material is 1 mm steel. Standard colors are white, galvanized, and black. Other colors available on request. Painting is applied over self-healing galvanization, so cut points on site do not need protection. The mounting components for the light rails are compatible with Enston's steel cable tray system products, speeding up installation and reducing part waste. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable tray (EC000047)
Height45 mm
Width100 mm
Material thickness1 mm
Length6000 mm
Working length6000 mm
Usable cross section4400 mm²
With coverno
Side perforationno
Bottom perforationyes
ModelWithout connector
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
ColourZinc
RAL-number0
Product codes
SAPANM005
STK1467577
PLC1467577
GTIN/EAN6438269325468
Manufacturer part numberMP-321S6
Vendor material number1467577
Basic information
Package measurements (L x W x H)1000 x 100 x 45 mm
Package volume4.5 l
Package weight1.666 kg
Base unitMeter
Package units6 / 768
Package contents–
UNSPSC31162309
BrandMP BOLAGEN
VendorMP BOLAGEN OY
