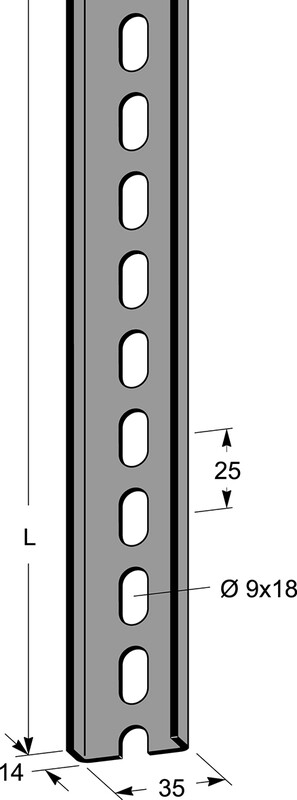

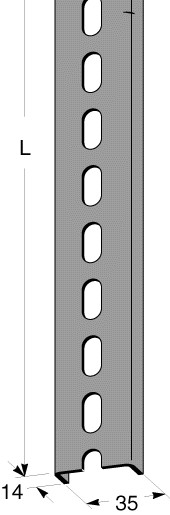

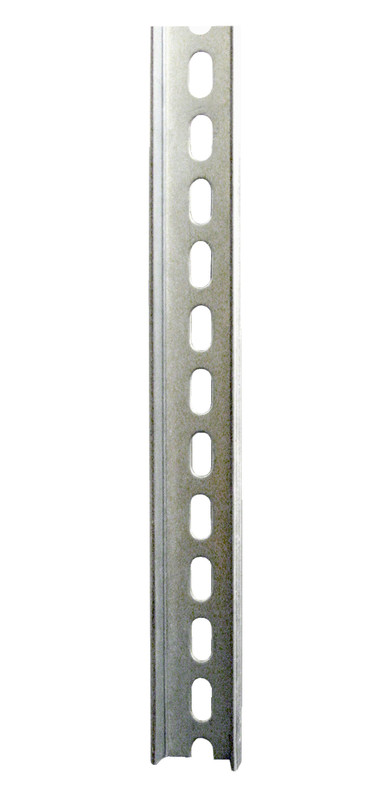

PENDANT RAIL MP-912A
Product code
1467420
Support rail

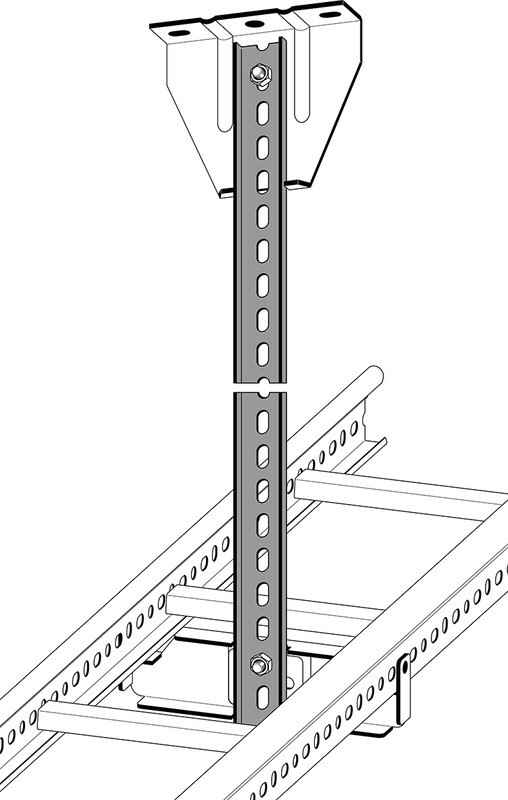

Multiple intermediate supports can be installed on the same support rail. Cut-off points c-c 100 mm are marked on the rail. This product description is an automated translation of the original Finnish description.
Multiple intermediate supports can be installed on the same support rail. Cut-off points c-c 100 mm are marked on the rail. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mounting rail/-profile (EC000386)
Length500 mm
Width35 mm
Height14 mm
Slit width9 mm
Material thickness2 mm
Profile shapeU-profile
ModelSingular profile
Type of perforationBack perforated
Hole width25 mm
With toothingno
Snap-offno
Load bearing capacity0 kN
Area moment of inertia Iy0 cm4
Area of inertia Iz0 cm4
Moment of resistance Wy0 cm³
Product codes
SAPANL330
STK1467420
PLC1467420
GTIN/EAN7394333010465
Manufacturer part numberMP-912S
Vendor material number1467420
Basic information
Package measurements (L x W x H)500 x 35 x 14 mm
Package volume0.245 l
Package weight0.39 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1049
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
