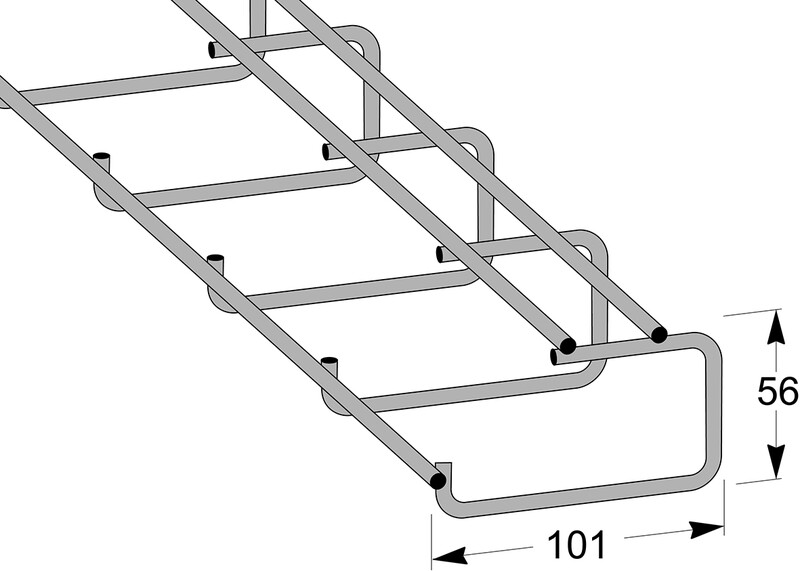

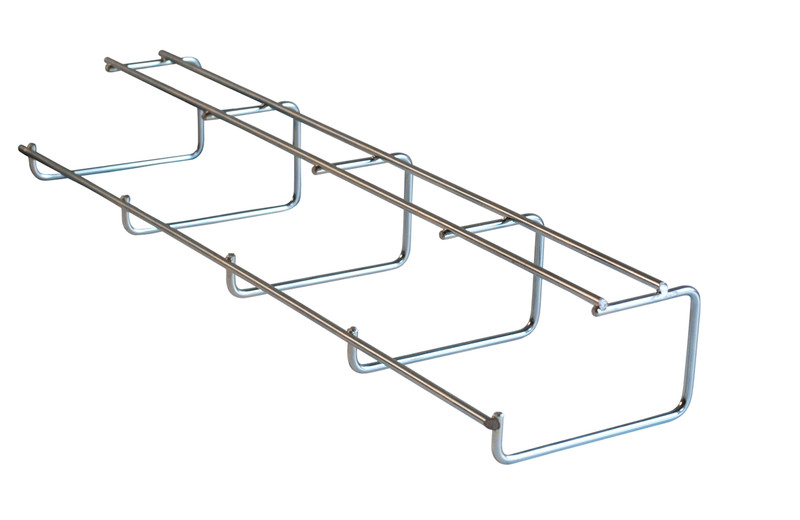

ROOF TRAY 2,5 M 100 MM
Product code
1467232
Ceiling rack - 2.5m
Installed directly onto the ceiling or wall using the universal mounting bracket MP-731. Perfect choice for compact spaces and sanatoriums This product description is an automated translation of the original Finnish description.
Installed directly onto the ceiling or wall using the universal mounting bracket MP-731. Perfect choice for compact spaces and sanatoriums This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mesh cable tray (EC000853)
Profile shapeG-shape
Width101 mm
Height56 mm
Length2500 mm
Working length2500 mm
Diameter longitudinal wire4 mm
Diameter transverse wire4 mm
Usable cross section3916 mm²
Integrated partitionNone
ModelWithout connector
Type of connectionOther
Suitable for circuit integrityno
MaterialSteel
Material qualityOther
Surface protectionGalvanic/electrolytic zinc plated
Product codes
SAPAIM531
STK1467232
PLC1467232
GTIN/EAN7394333050201
Manufacturer part numberMP-729E
Vendor material number1467232
Basic information
Package measurements (L x W x H)2500 x 101 x 56 mm
Package volume14.14 l
Package weight1.26 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC39131703
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.4146
GWP, uniteach
Source for GWP dataEPD
