SPRINGNUT AND BOLT M10X35 MP-079Z
Product code
1467815

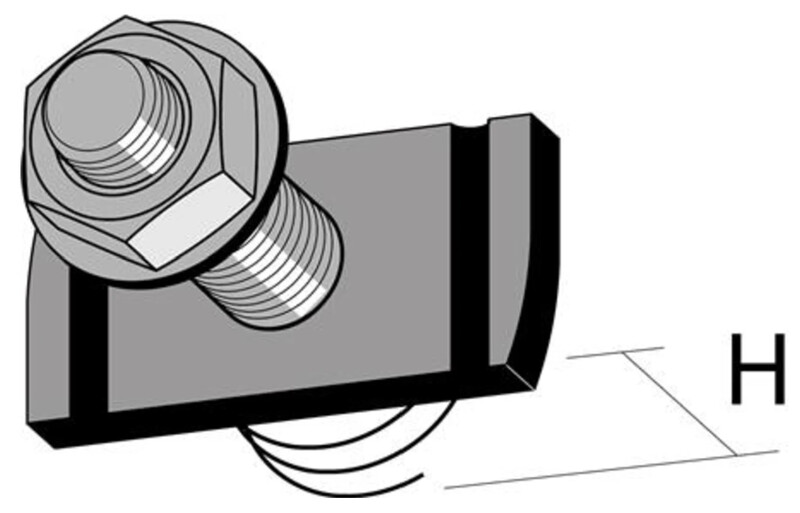

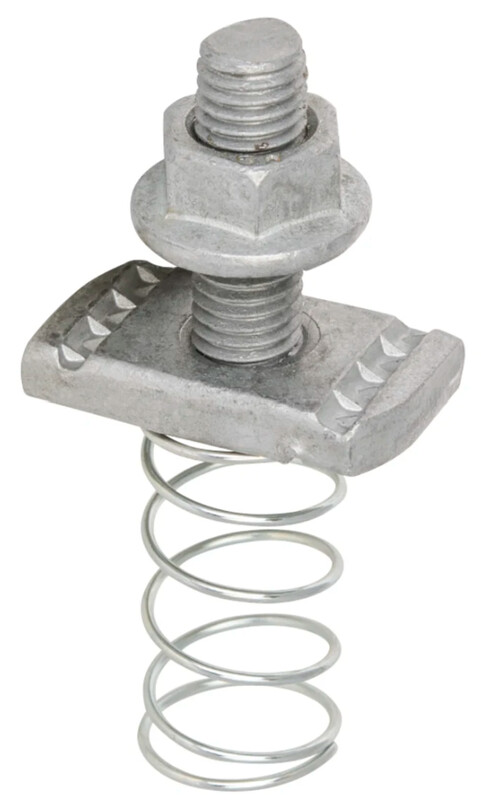

Sliding nut equipped with an M10x35 screw. Designed for attaching brackets to roof beams or anchor rails. Profile height 21 or 41 mm. H-dimension refers to the height of the roof beam/anchor rail. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mounting material for cable support system (EC001005)
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Surface protectionHot-dip galvanised
Operating temperature-40-120 °C
ColourZinc
RAL-number0
Product codes
SAPANL674
STK1467815
PLC1467815
GTIN/EAN7394333029108
Manufacturer part numberMP-079Z
Vendor material number1467815
Basic information
Package measurements (L x W x H)25 x 35 x 20 mm
Package volume0.018 l
Package weight0.056 kg
Base uniteach
Package units10 / 50
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1585
GWP, uniteach
Source for GWP dataEPD
