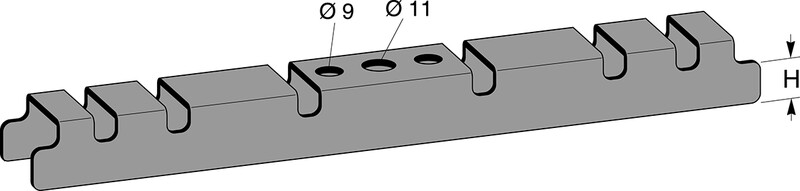

SUPPORT FOR YOKE 500-600 MM
Product code
1467288
Intermediate support 300-600 mm

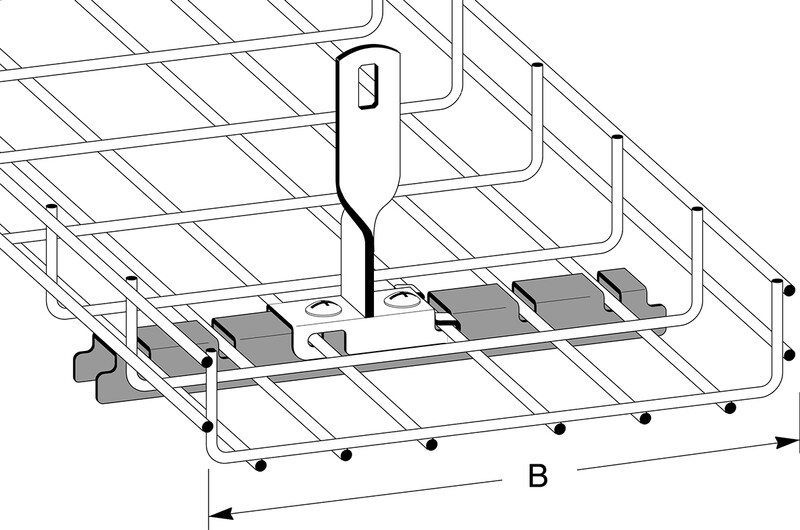

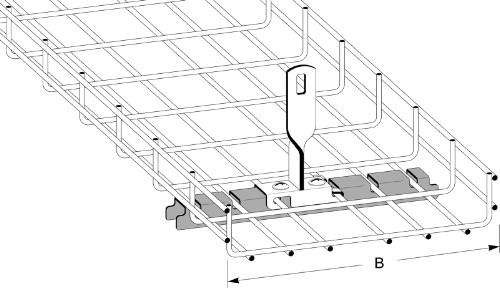

Used together with the intermediate support MP-757 for widths of 300–600 mm to prevent the edges of the wire shelf from bending under heavier cable loads. The support is screwed to the intermediate support using mounting screws MP-937 only after the wire shelf has first been installed on the intermediate support. This product description is an automated translation of the original Finnish description.
Used together with the intermediate support MP-757 for widths of 300–600 mm to prevent the edges of the wire shelf from bending under heavier cable loads. The support is screwed to the intermediate support using mounting screws MP-937 only after the wire shelf has first been installed on the intermediate support. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Wall- and ceiling bracket for cable support system (EC001003)
Suitable for cable support system width500-600 mm
Suitable for cable support system height50 - 110 mm
ModelSuspended
Suitable for wire mesh trayyes
Suitable for cable ladderno
Suitable for cable trayno
Tray mountingScrewable
Load bearing capacity800 N
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionGalvanic/electrolytic zinc plated
ColourZinc
RAL-number0
Product codes
SAPAIM305
STK1467288
PLC1467288
GTIN/EAN7394333049045
Manufacturer part numberMP-767E
Vendor material number1467288
Basic information
Package measurements (L x W x H)448 x 31 x 30 mm
Package volume0.417 l
Package weight0.51 kg
Base uniteach
Package units1
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.3668
GWP, uniteach
Source for GWP dataEPD
