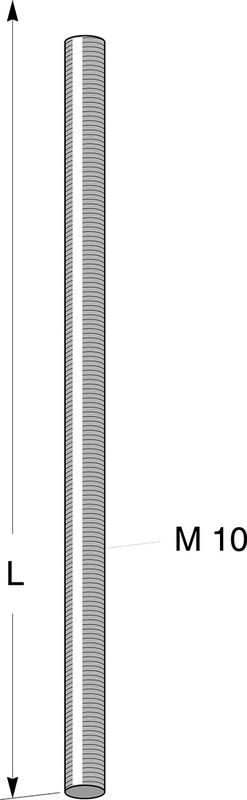

THREADED ROD MP-928E
Product code
1467626

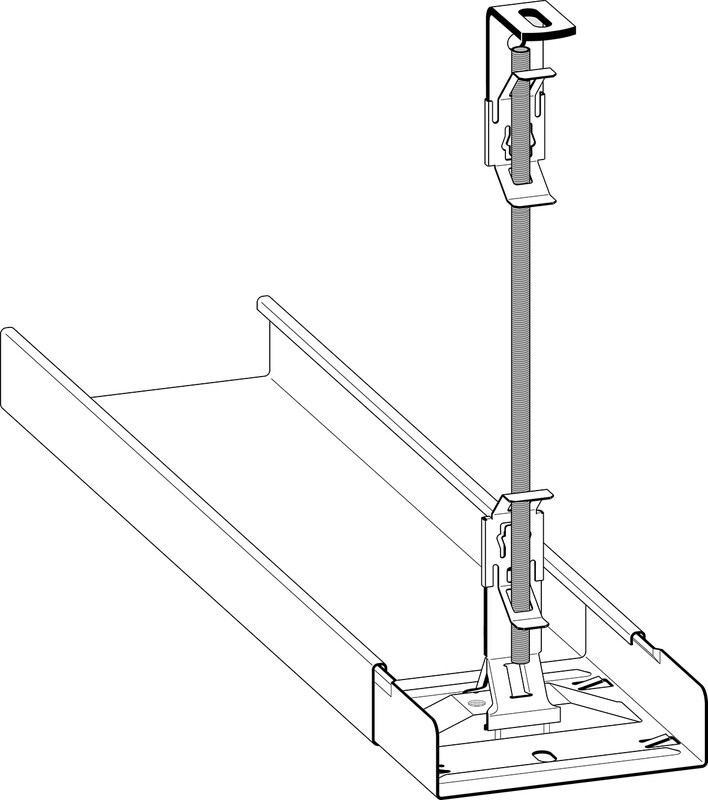

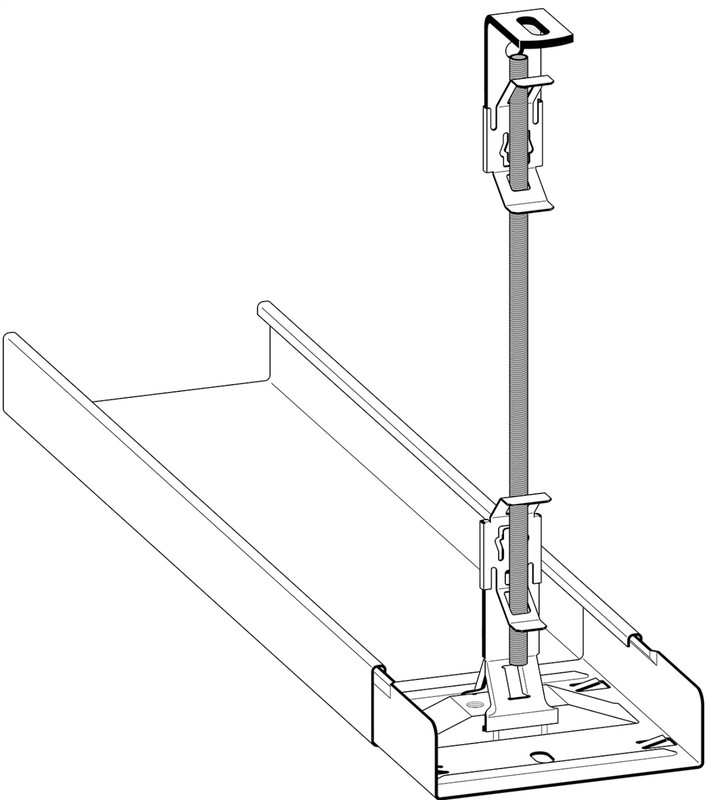

To achieve ±25 mm adjustment with the threaded rod bracket, cut (50-75 mm shelves) 90 mm shorter or (100-600 mm) 50 mm shorter than the desired construction height.
Installation components for the threaded rod:
M10 locking nut - 14 676 28 (MP-044E)
Threaded rod bracket - 14 673 30 (MP-925S)
Quick connector for central beam - 14 673 36 (MP-931S)
Extension rod - 14 676 20 (MP-926E) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Threaded rod (EC000028)
MaterialSteel
Material quality4.6/5.6 (steel)
Surface protectionGalvanic/electrolytic zinc plated
Layer thickness surface protection10 µm
ColourZinc
Thread typeMetric
Thread size (metric)10
Pitch thread1.5 mm
Thread per inch0
Left-handed threadno
Length3000 mm
With cutting groovesno
Product codes
SAPANM026
STK1467626
PLC1467626
GTIN/EAN7394333123363
Manufacturer part numberMP-928E
Vendor material number1467626
Basic information
Package measurements (L x W x H)1000 x 10 x 10 mm
Package volume0.1 l
Package weight0.443 kg
Base unitMeter
Package units3 / 20 / 60
Package contents–
UNSPSC31161618
BrandMP BOLAGEN
VendorMP BOLAGEN OY
