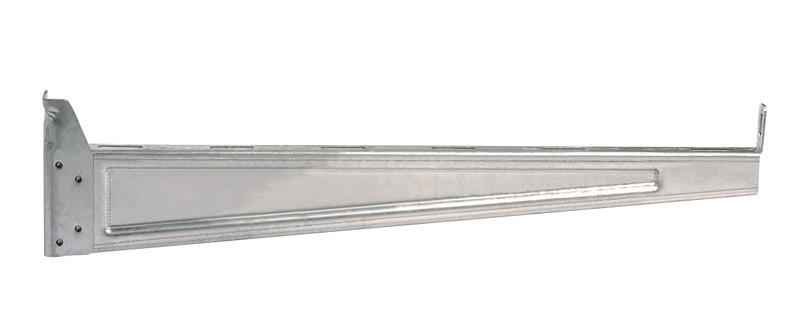

CANTILEVER ARM 754Z C4 KL300MM 150KG KZN
Product code
1467267
External wall bracket type KL
The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Bracket for cable support system (EC000022)
Length40 mm
Width340 mm
Height90 mm
Suitable for cable support system width300-300 mm
ModelWall bracket
Angle90-90 °
Safe working load according to IEC 615371500 N
Suitable for circuit integrityno
MaterialSteel
Material qualityOther
Surface protectionHot-dip galvanised
Operating temperature-40-120 °C
ColourZinc
RAL-number0
Product codes
SAPAIR115
STK1467267
PLC1467267
GTIN/EAN7394333055053
Manufacturer part numberMP-754Z
Vendor material number1467267
Basic information
Package measurements (L x W x H)350 x 40 x 90 mm
Package volume1.26 l
Package weight0.45 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (9)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.2735
GWP, uniteach
Source for GWP dataEPD
