WALL BRACKET MP-735S
Product code
1467246

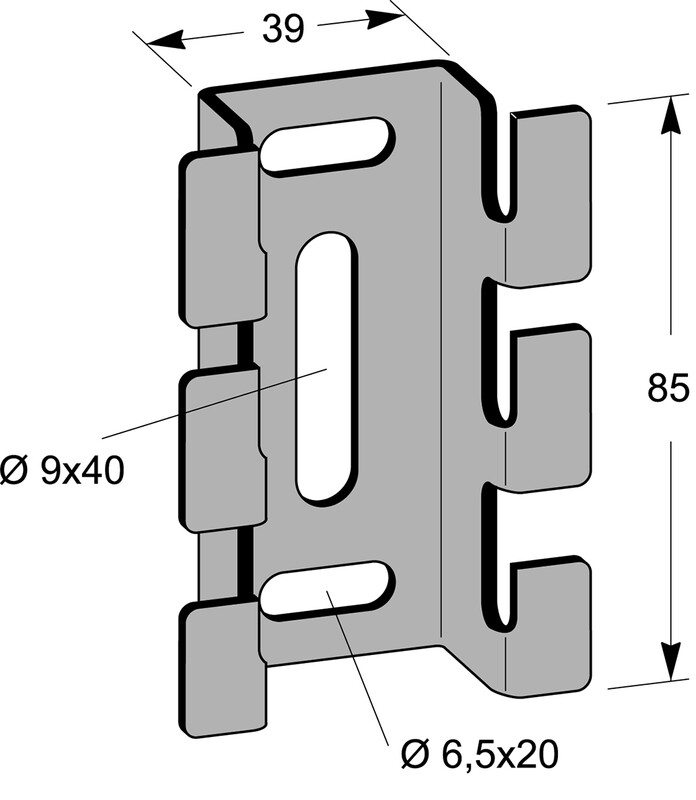

Wall bracket 75-120 mm

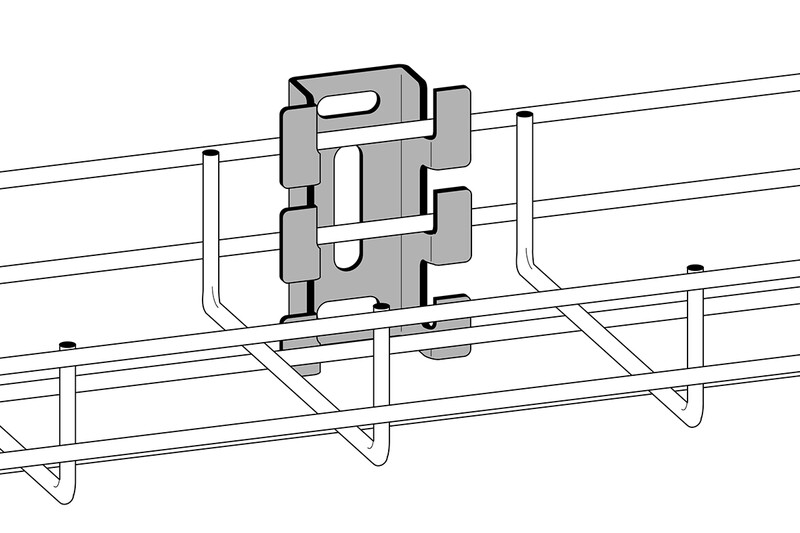

The wall bracket is designed for hanging wire shelves on the wall, for example horizontally and vertically. Primarily intended for widths of 75 and 120 mm. Shelf locking is done by bending the prongs. This product description is an automated translation of the original Finnish description.
The wall bracket is designed for hanging wire shelves on the wall, for example horizontally and vertically. Primarily intended for widths of 75 and 120 mm. Shelf locking is done by bending the prongs. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Wall- and ceiling bracket for cable support system (EC001003)
Suitable for cable support system width55-600 mm
Suitable for cable support system height50 - 60 mm
ModelOther
Suitable for wire mesh trayyes
Suitable for cable ladderno
Suitable for cable trayno
Tray mountingRetaining collar
Load bearing capacity100 N
Suitable for circuit integrityno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
ColourZinc
RAL-number0
Product codes
SAPAIT211
STK1467246
PLC1467246
GTIN/EAN7394333056159
Manufacturer part numberMP-735S
Vendor material number1467246
Basic information
Package measurements (L x W x H)85 x 55 x 28 mm
Package volume0.131 l
Package weight0.11 kg
Base uniteach
Package units1 / 10 / 160
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
