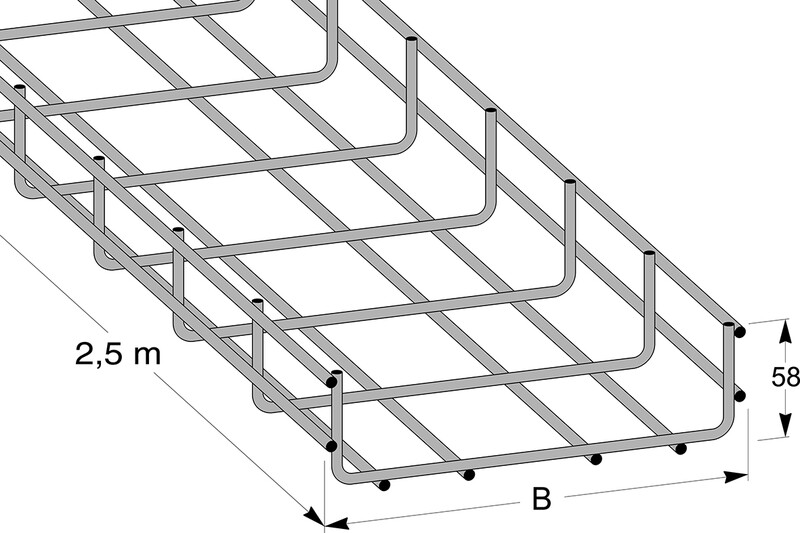

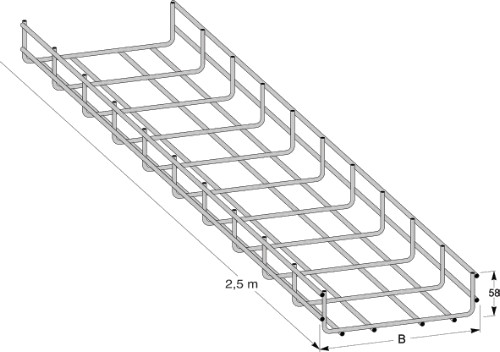

WIRE MESH TRAY 120 MM
Product code
1468862
The most durable market shelf. The new Z4 coating is significantly more environmentally friendly compared to hot-dip galvanizing. The Bezinal® coating (95% zinc and 5% aluminum) is a eutectic alloy with excellent corrosion resistance and workability. Its lifespan is significantly longer than that of hot-dip galvanized wire shelves. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mesh cable tray (EC000853)
Profile shapeU-shape
Width120 mm
Height58 mm
Length2500 mm
Working length2500 mm
Diameter longitudinal wire5 mm
Diameter transverse wire5 mm
Usable cross section4800 mm²
Integrated partitionNone
ModelWithout connector
Type of connectionOther
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionHot-dip galvanised
Product codes
SAPCDN853
STK1468862
PLC1468862
GTIN/EAN7394333051093
Manufacturer part numberMP-722Z4
Vendor material number1468862
Basic information
Package measurements (L x W x H)2500 x 120 x 58 mm
Package volume17.4 l
Package weight3.1 kg
Base uniteach
Package units1 / 2
Package contents–
UNSPSC39131704
BrandMP BOLAGEN
VendorMP BOLAGEN OY
