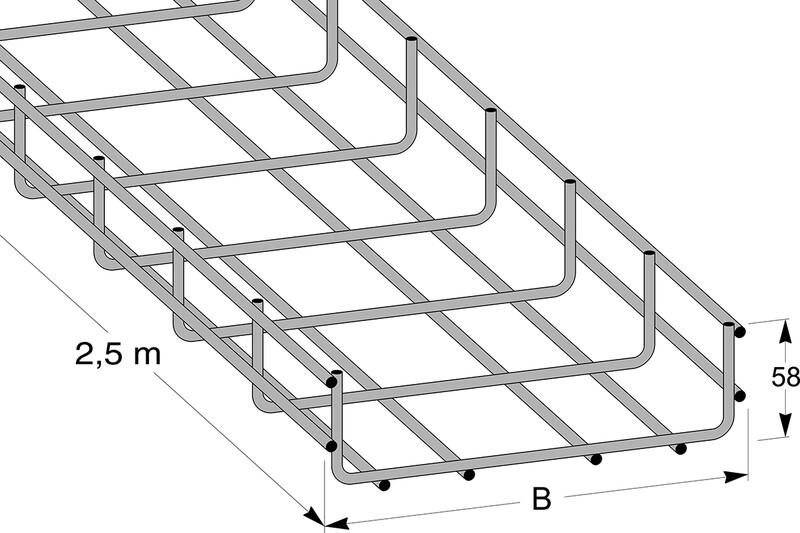

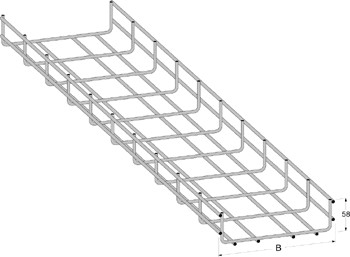

WIRE MESH TRAY 55 MM
Product code
1467200
Wire shelf 2.5 m

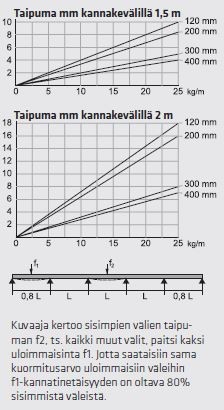

The diagram shows a deflection at L=1.5 m and a support spacing of 2 m. Safety factor: ?1.7 times maximum load. The ends of the cross wires are beveled. Wire shelves with mounting hardware can be supplied painted in various color shades. Length 2.5 m. This product description is an automated translation of the original Finnish description.
The diagram shows a deflection at L=1.5 m and a support spacing of 2 m. Safety factor: ?1.7 times maximum load. The ends of the cross wires are beveled. Wire shelves with mounting hardware can be supplied painted in various color shades. Length 2.5 m. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mesh cable tray (EC000853)
Profile shapeU-shape
Width55 mm
Height58 mm
Length2500 mm
Working length2500 mm
Diameter longitudinal wire4 mm
Diameter transverse wire4 mm
Usable cross section1950 mm²
Integrated partitionNone
ModelWithout connector
Type of connectionOther
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionGalvanic/electrolytic zinc plated
Product codes
SAPAIU258
STK1467200
PLC1467200
GTIN/EAN7394333049335
Manufacturer part numberMP-719E
Vendor material number1467200
Basic information
Package measurements (L x W x H)2500 x 55 x 58 mm
Package volume7.975 l
Package weight1.82 kg
Base uniteach
Package units1 / 6 / 108
Package contents–
UNSPSC39131703
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.9322
GWP, uniteach
Source for GWP dataEPD
