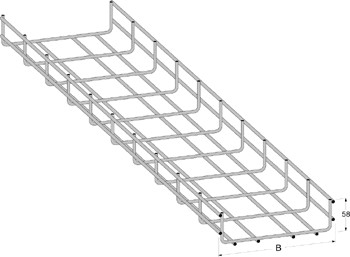

WIRE MESH TRAY 75 MM
Product code
1467206
Wire shelf 3m
The diagram shows deflection at L=1.5 m with a support span of 2 m. Safety factor: ?1.7 times maximum load. Ends of cross wires are beveled. Wire shelves with mounting hardware can be supplied painted in various color shades. Length 3 m. This product description is an automated translation of the original Finnish description.
The diagram shows deflection at L=1.5 m with a support span of 2 m. Safety factor: ?1.7 times maximum load. Ends of cross wires are beveled. Wire shelves with mounting hardware can be supplied painted in various color shades. Length 3 m. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mesh cable tray (EC000853)
Profile shapeU-shape
Width75 mm
Height58 mm
Length3000 mm
Working length3000 mm
Diameter longitudinal wire4 mm
Diameter transverse wire4 mm
Usable cross section2950 mm²
Integrated partitionNone
ModelWithout connector
Type of connectionOther
Suitable for circuit integrityno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
Product codes
SAPAIR206
STK1467206
PLC1467206
GTIN/EAN7394333048789
Manufacturer part numberMP-720S3
Vendor material number1467206
Basic information
Package measurements (L x W x H)3000 x 75 x 58 mm
Package volume13.05 l
Package weight2.22 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC39131704
BrandMP BOLAGEN
VendorMP BOLAGEN OY
