YOKE, TRAY 500 MM
Product code
1467171

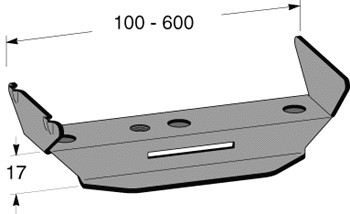

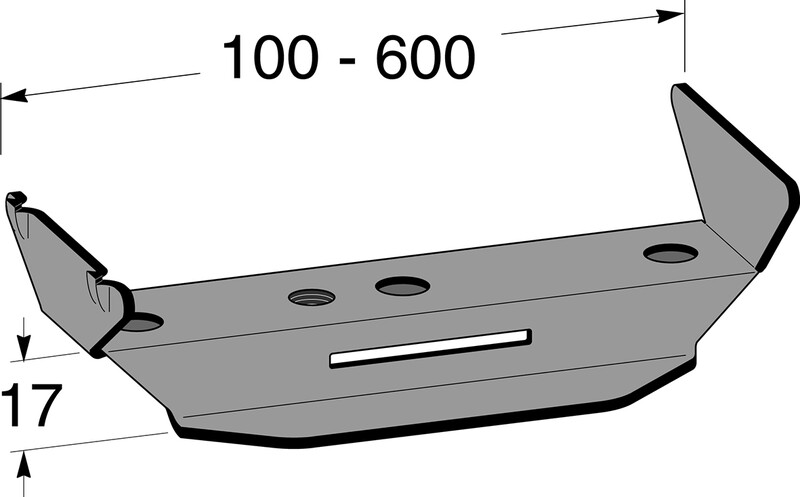

Center support

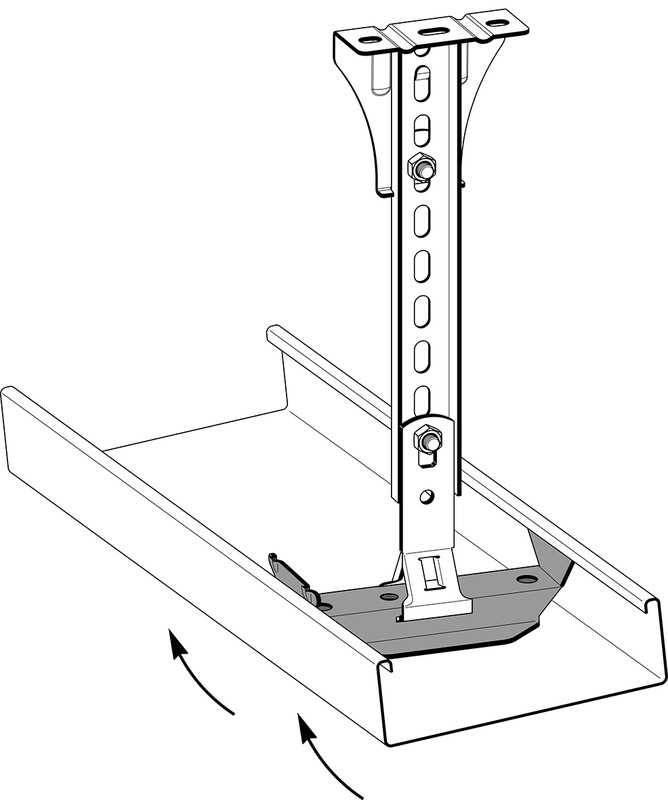

NOTE! The 50–75 mm center support is pushed into the shelf end and may only be used for center support installation. The 100–600 mm center support can also be used for internal wall support installation. The center support has a maximum load capacity of 150 kg with a uniformly distributed load. Safety factor is ?1.7 times the maximum load. This product description is an automated translation of the original Finnish description.
NOTE! The 50–75 mm center support is pushed into the shelf end and may only be used for center support installation. The 100–600 mm center support can also be used for internal wall support installation. The center support has a maximum load capacity of 150 kg with a uniformly distributed load. Safety factor is ?1.7 times the maximum load. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Wall- and ceiling bracket for cable support system (EC001003)
Suitable for cable support system width500-500 mm
Suitable for cable support system height45-45 mm
ModelSuspended
Suitable for wire mesh trayno
Suitable for cable ladderno
Suitable for cable trayyes
Tray mountingScrewless
Load bearing capacity1500 N
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
ColourZinc
RAL-number0
Product codes
SAPAIW092
STK1467171
PLC1467171
GTIN/EAN7394333121161
Manufacturer part numberMP-576S
Vendor material number1467171
Basic information
Package measurements (L x W x H)500 x 75 x 40 mm
Package volume1.5 l
Package weight0.72 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121101
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1937
GWP, uniteach
Source for GWP dataEPD
