YOKE, WIRE MESH TRAY 120-600 MM
Product code
1467273
Intermediate support 120-600 mm

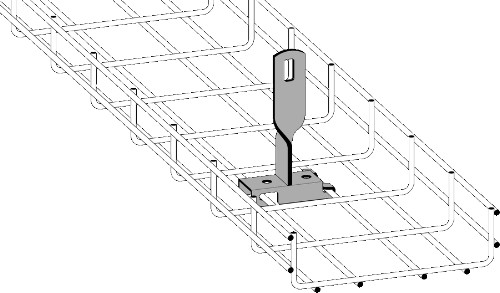

For shelf widths of 120 - 600 mm. For widths of 300-600 mm, an intermediate support is used to prevent the edges of the wire shelf from sagging downward. Max. load = 80 kg. Safety factor: ? 1.7 times max. load. This product description is an automated translation of the original Finnish description.
For shelf widths of 120 - 600 mm. For widths of 300-600 mm, an intermediate support is used to prevent the edges of the wire shelf from sagging downward. Max. load = 80 kg. Safety factor: ? 1.7 times max. load. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Bracket for cable support system (EC000022)

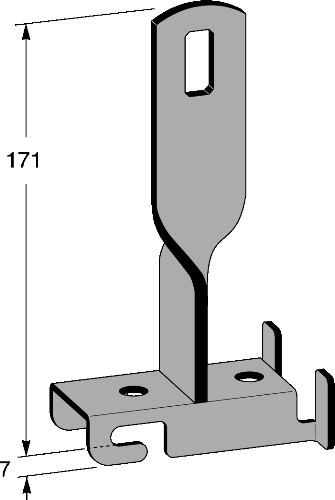

Length75 mm
Width55 mm
Height178 mm
Suitable for cable support system width120-600 mm
ModelClamping console
Angle90-90 °
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionHot-dip galvanised
ColourZinc
RAL-number0
Product codes
SAPAIO746
STK1467273
PLC1467273
GTIN/EAN7394333052625
Manufacturer part numberMP-757Z
Vendor material number1467273
Basic information
Package measurements (L x W x H)75 x 178 x 55 mm
Package volume0.734 l
Package weight0.2 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (8)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.566
GWP, uniteach
Source for GWP dataEPD
