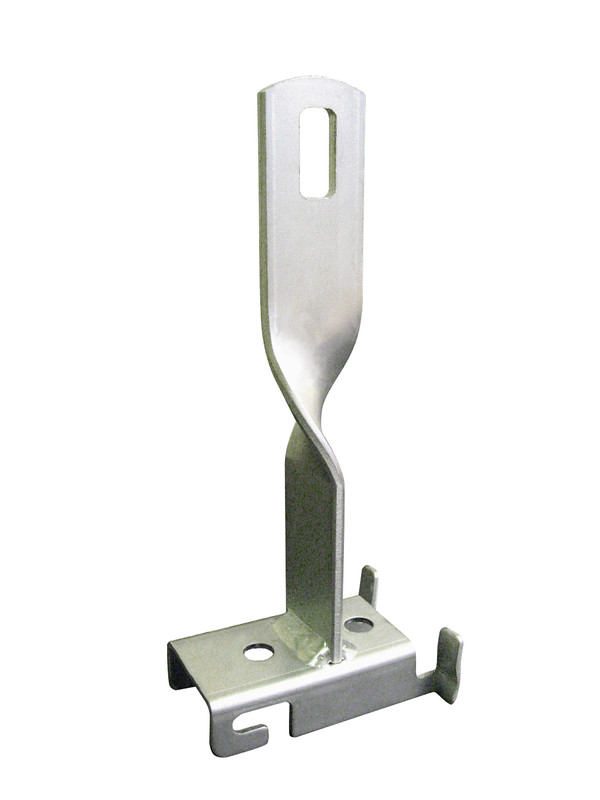

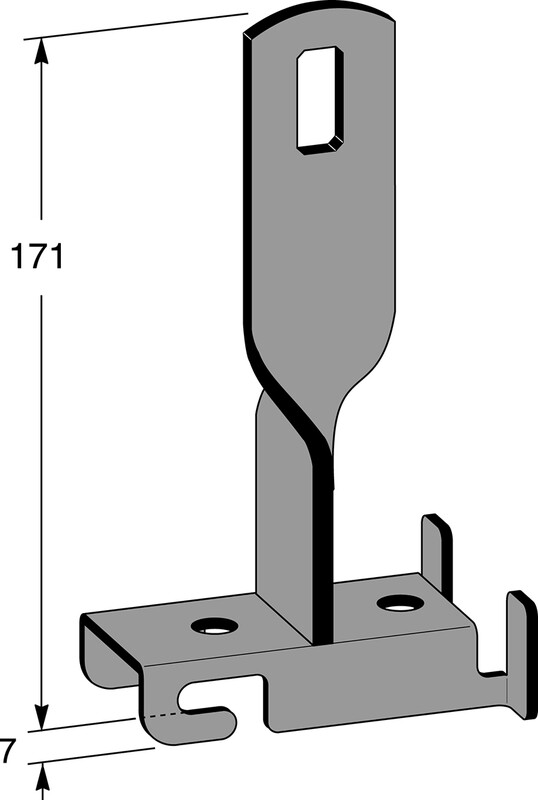

YOKE, WIRE MESH TRAY 120-600 MM
Product code
1467271
Intermediate support 120-600 mm

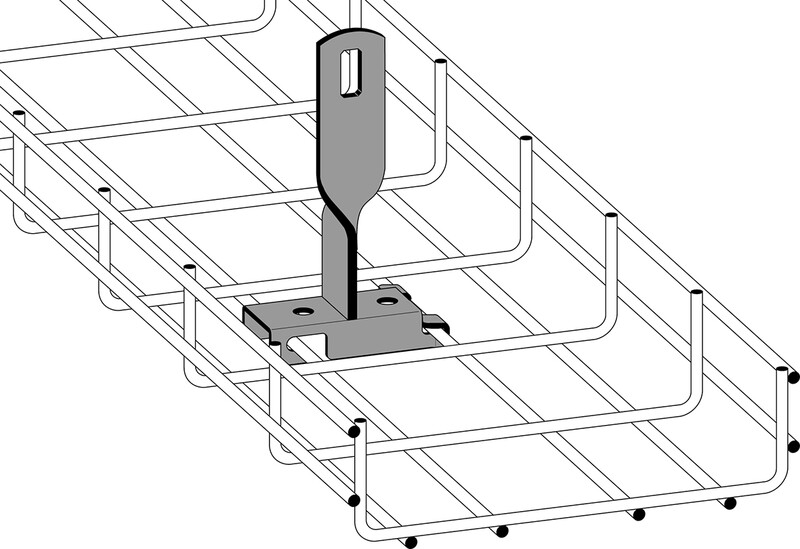

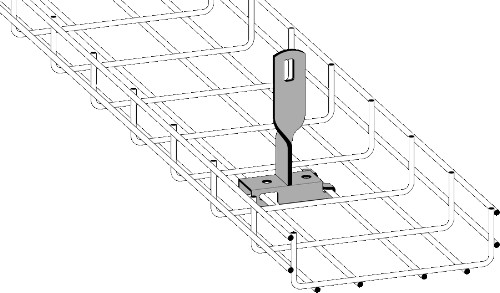

For shelf widths of 120 - 600 mm. For widths of 300-600 mm, an intermediate support is used to prevent the edges of the wire shelf from sagging downward. Max. load = 80 kg. Safety factor: ? 1.7 times max. load. This product description is an automated translation of the original Finnish description.
For shelf widths of 120 - 600 mm. For widths of 300-600 mm, an intermediate support is used to prevent the edges of the wire shelf from sagging downward. Max. load = 80 kg. Safety factor: ? 1.7 times max. load. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Wall- and ceiling bracket for cable support system (EC001003)
Suitable for cable support system width120-600 mm
Suitable for cable support system height50 - 110 mm
ModelSuspended
Suitable for wire mesh trayyes
Suitable for cable ladderno
Suitable for cable trayno
Tray mountingRetaining collar
Load bearing capacity800 N
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionGalvanic/electrolytic zinc plated
ColourZinc
RAL-number0
Product codes
SAPAIU525
STK1467271
PLC1467271
GTIN/EAN7394333052175
Manufacturer part numberMP-757E
Vendor material number1467271
Basic information
Package measurements (L x W x H)75 x 178 x 55 mm
Package volume0.734 l
Package weight0.2 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.536
GWP, uniteach
Source for GWP dataEPD
