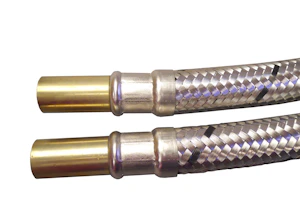

CONNECTION HOSE NEOFLEX SIL 22x22x1000mm PIPE/PIPE DN20
Product code
6583293
Neoflex SIL connection hoses are silicone hoses. They are highly flexible hoses with a braid made of stainless steel.
Features
- size: DN20
- inner diameter of hose: 19mm
- outer diameter of hose: 26mm
- maximum pressure: 10 bar
- maximum temperature: 90 degrees
- minimum flow at 3 bar: 145l/min
The intended use of Neoflex SIL hoses is for drinking water applications when a larger size flexible hose is required. Neoflex SIL hoses do not have STF approval. STF approval is available for Neoperlin SPX hoses. BUTYL connection hoses are suitable for use when the hose needs to be resistant to oxygen diffusion.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Flexible connecting hose (metal) (EC011399)
MaterialStainless steel
Inner diameter hose19 mm
Connection 1Tube end
Nominal diameter connection 1Other
Connection type connection 1Straight
Connection 2Tube end
Nominal diameter connection 2Other
Suitable for potable waterno
Connection type connection 2Straight
Working length1000 mm
Product codes
SAPCKI075
HPAC6583293
PLC6583293
GTIN/EAN5708550105781
Manufacturer part number363689100
Vendor material number363689100
Basic information
Package measurements (L x W x H)1000 x 30 x 30 mm
Package volume0.9 l
Package weight0.62 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC40142008
BrandNEOPERL
VendorNEOPERL NORDIC A/S
