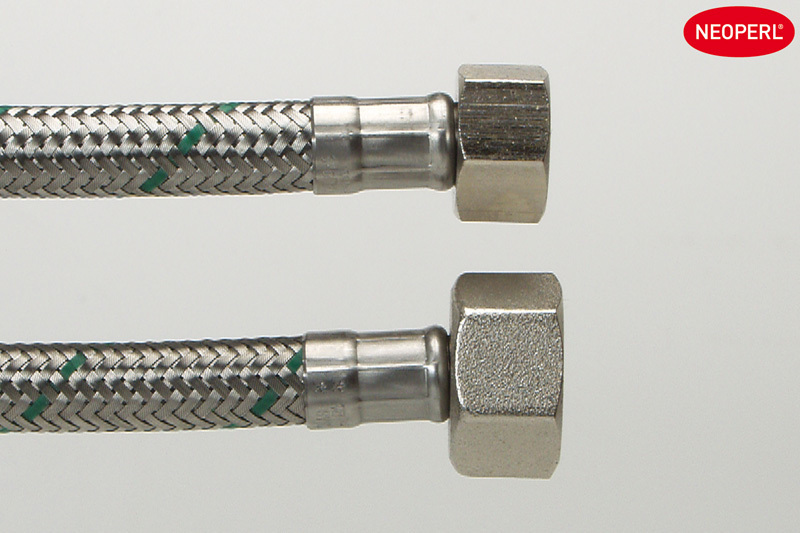

CONNECTION HOSE NEOFLEX SPX 1/2x3/8x400mm FT
Product code
6522208
Neoflex SPX connection hose, made of stainless steel braiding. SPX DN8 1/2 internal thread x 3/8 internal thread. SPX hoses are used for washing machine taps, kitchen taps, toilet seats, washing machines, dishwashers, and refrigerators. Also available on a case-by-case basis in healthcare.
Features
- length 400 mm
- size DN8
- maximum pressure 10 bar
- maximum temperature +70 °C
- internal hose diameter Ř8.2
- external hose diameter Ř11.0
- minimum flow rate 28 l/min at 3 bar
The product has STF type approval. The hose meets the essential requirements set by the Ministry of the Environment’s Regulation 475/2018 for flexible connecting pipes.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Flexible connecting hose (metal) (EC011399)
MaterialStainless steel
Inner diameter hose8.2 mm
Connection 1Internal thread
Nominal diameter connection 11/2 inch (15)
Connection type connection 1Straight
Connection 2Internal thread
Nominal diameter connection 23/8 inch (10)
Suitable for potable wateryes
Connection type connection 2Straight
Working length400 mm
Product codes
SAPCEJ993
HPAC6522208
PLC6522208
GTIN/EAN5708550380959
Manufacturer part number39000428901
Vendor material number39000428901
Basic information
Package measurements (L x W x H)400 x 22 x 22 mm
Package volume0.194 l
Package weight0.1 kg
Base uniteach
Package units1
Package contents–
UNSPSC40142008
BrandNEOPERL
VendorNEOPERL NORDIC A/S
