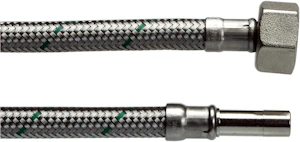

CONNECTION HOSE NEOFLEX SPX 1/2x400mm FT STRAIGHT/PIPE DN8
Product code
6522343
Neoflex SPX connection hose, made of stainless steel braiding. SPX DN8 1/2 internal thread straight x 10 mm pipe. SPX hoses are used for washing machine taps, kitchen taps, toilet seats, washing machines, dishwashers, and refrigerators. Also available for use in healthcare on a case-by-case basis.
Features
- length 400 mm
- size DN8
- maximum pressure 10 bar
- maximum temperature +70 °C
- internal hose diameter Ř8.2
- external hose diameter Ř11.0
- minimum flow rate 28 l/min at 3 bar
The product has STF type approval. The hose meets the essential requirements set by the Ministry of the Environment's Regulation 475/2018 for flexible connecting pipes.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Flexible connecting hose (metal) (EC011399)
MaterialStainless steel
Inner diameter hose8.2 mm
Connection 1Internal thread
Nominal diameter connection 11/2 inch (15)
Connection type connection 1Straight
Connection 2Tube end
Nominal diameter connection 2Other
Suitable for potable wateryes
Connection type connection 2Straight
Working length400 mm
Product codes
SAPAMT105
HPAC6522343
PLC6522343
GTIN/EAN5708550106023
Manufacturer part number39000429101
Vendor material number39000429101
Basic information
Package measurements (L x W x H)400 x 20 x 20 mm
Package volume0.16 l
Package weight0.094 kg
Base uniteach
Package units1 / 10 / 150
Package contents–
UNSPSC40142008
BrandNEOPERL
VendorNEOPERL NORDIC A/S
