MICRODUCT NESTOR OPTIMUS DB 4 x 16/12MM BLUE
Product code
5218897
Optimus DB 4 x 16/12mm Blue

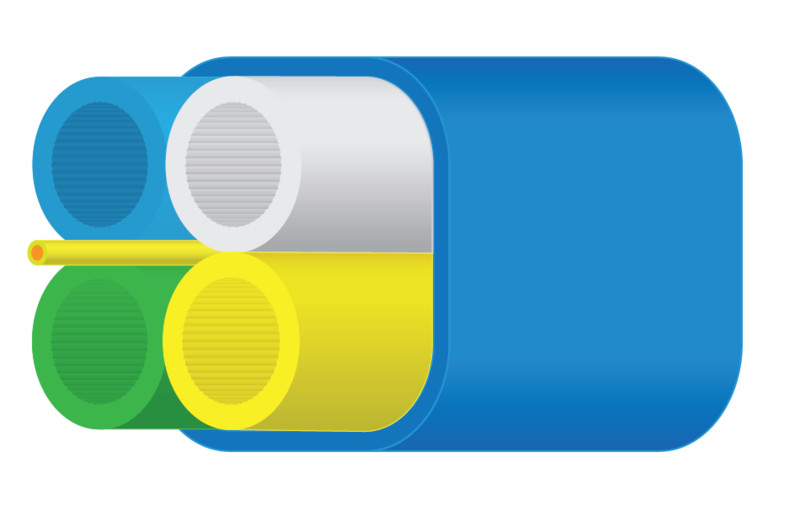

Direct-to-ground microchannel bundle 4 x 16/12mm. Outer dimensions of the bundle: height 34mm, width 34mm. The bundle contains four channels with outer diameters of 16mm and inner diameters of 12mm. The channel colors are blue, white, yellow, and green. The outer jacket of the microchannel bundle is blue.
The product is also available equipped with signal/mark wire, product code L19435TW. This product description is an automated translation of the original Finnish description.
Direct-to-ground microchannel bundle 4 x 16/12mm. Outer dimensions of the bundle: height 34mm, width 34mm. The bundle contains four channels with outer diameters of 16mm and inner diameters of 12mm. The channel colors are blue, white, yellow, and green. The outer jacket of the microchannel bundle is blue.
The product is also available equipped with signal/mark wire, product code L19435TW. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fibre optic duct (EC001474)
Outer diameter40.7 mm
Inner diameter12 mm
Number of glass fibre ducts4
Metal-freeyes
Armouring/reinforcementArmouring
Flame resistantno
Halogen freeyes
Colour outer sheathBlue
Transparentno
Product codes
SAPDEL366
STK5218897
PLC5218897
GTIN/EAN6410052188979
Manufacturer part numberL19435
Vendor material numberL19435
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.001 l
Package weight0 kg
Base unitMeter
Package units1000
Package contents–
UNSPSC26121630
BrandNESTOR CABLES
VendorNESTOR CABLES
