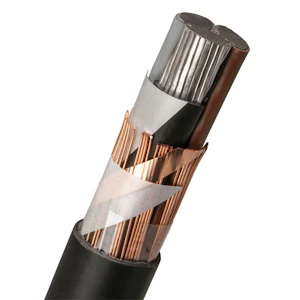

ALUM. POWER CABLE-HF NEXANS AMCMK HF EASY 1 KV 3X120/41
Product code
0623193
No product description available.
Product details
Technical specifications
Conductor materialAluminium
Conductor surfaceBare
Nominal cross section conductor120 mm²
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.253 Ohm/km
Shape of conductorSector-shaped
Number of cores3
Material core insulationOther
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2true
Core identificationColour
Laminated sheathfalse
With protective conductortrue
Screentrue
Concentric conductorCopper
Product codes
SAPCSB193
PLC0623193
STK0623193
GTIN/EAN7330000167896
Manufacturer part number15162698-201-05
Vendor material number0623193
Basic information
Package measurements (L x W x H)1000 x 1000 x 38 mm
Package volume1.444 l
Package weight1.86 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121629
BrandNEXANS
VendorNEXANS SWEDEN AB
Documents (4)
Certificates
Brochures & documents
Links
Sustainability information
Features
Amount of embodied carbon (tCO2e)11.3987941266076
EPD documentYes
Made from PVCNo
Halogen freeYes
Material for CO2 dataAluminium
Documents (1)
Sustainability brochures & documents
