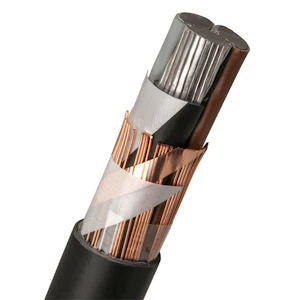

ALUM. POWER CABLE-HF NEXANS AMCMK HF EASY 1 KV 3X240/72

Product code
0623196
No product description available.

Product details

Technical specifications

Conductor materialAluminium
Conductor surfaceBare
Nominal cross section conductor240 mm²
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.125 Ohm/km
Shape of conductorSector-shaped
Number of cores3
Material core insulationOther
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2true
Core identificationColour
Laminated sheathfalse
With protective conductortrue
Screentrue
Concentric conductorCopper

Product codes

SAPCSB196
PLC0623196
STK0623196
GTIN/EAN7330000168367
Manufacturer part number15162998-201-05
Vendor material number0623196

Basic information

Package measurements (L x W x H)1000 x 1000 x 50 mm
Package volume2.5 l
Package weight3.48 kg
Base unitMeter
Package units1 / 500
Package contents
UNSPSC26121629
BrandNEXANS
VendorNEXANS SWEDEN AB

Documents (4)

Sustainability information

Features

Amount of embodied carbon (tCO2e)22.1545487870262
EPD documentYes
Halogen freeYes
Made from PVCNo
Material for CO2 dataAluminium
