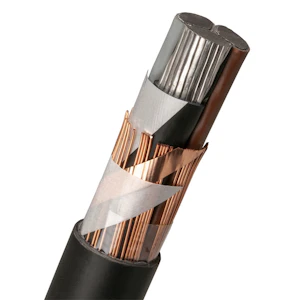

ALUM. POWER CABLE-HF NEXANS AMCMK HF EASY 1 KV 3X300/88
Product code
0623197
No product description available.
Product details
Technical specifications
Conductor materialAluminium
Conductor surfaceBare
Nominal cross section conductor300 mm²
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.1 Ohm/km
Shape of conductorSector-shaped
Number of cores3
Material core insulationOther
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2true
Core identificationColour
Laminated sheathfalse
With protective conductortrue
Screentrue
Concentric conductorCopper
Product codes
SAPCSB197
PLC0623197
STK0623197
GTIN/EAN7330000167957
Manufacturer part number15163098-201-05
Vendor material number0623197
Basic information
Package measurements (L x W x H)1000 x 1000 x 55 mm
Package volume3.025 l
Package weight4.32 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121629
BrandNEXANS
VendorNEXANS SWEDEN AB
Documents (4)
Certificates
Brochures & documents
Links
Sustainability information
Features
Amount of embodied carbon (tCO2e)27.5547470529657
EPD documentYes
Made from PVCNo
Halogen freeYes
Material for CO2 dataAluminium
Documents (1)
Sustainability brochures & documents
