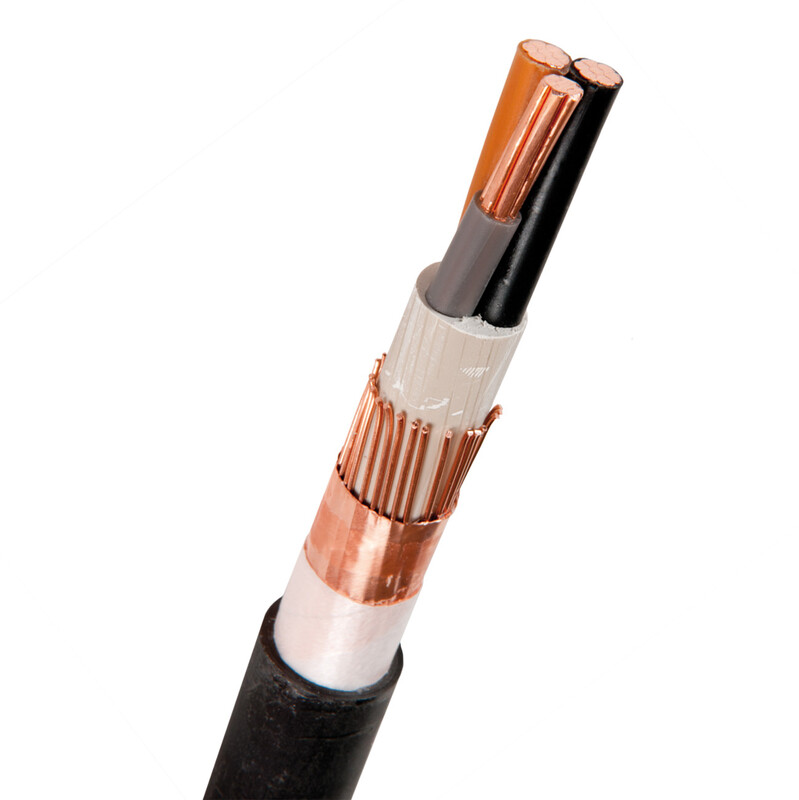

COPPER POWER CABLE-HF EMC MCMK HF EMC 1 kV 3X6/6 Dca

MCMK HF EMC is a halogen-free, PEX-insulated, HFFR-sheathed cable with round, stranded copper conductors up to 35 mm² cross-section. In other cross-sectional areas, stranded sector-shaped copper conductors are used. The cable is designed according to SS 424 14 18. The MCMK-HF EMC cable features a braided copper wire shield and a full-coverage copper tape as counter shield. The copper shield provides 100% coverage and meets EMC directive requirements when properly installed. The number of strands and resistance of the conductors comply with Class 2 of SS EN 60228. The conductor color coding follows SS 424 17 20. The sheath is UV protected. The sheath is marked with type/manufacturer/fire rating/year+month/length. MCMK-HF EMC meets the CPR classification fire rating Dca-s2,d2,a2. No corrosive gases are emitted during combustion and smoke production is low. The cable is certified by Intertek. This product description is an automated translation of the original Finnish description.
