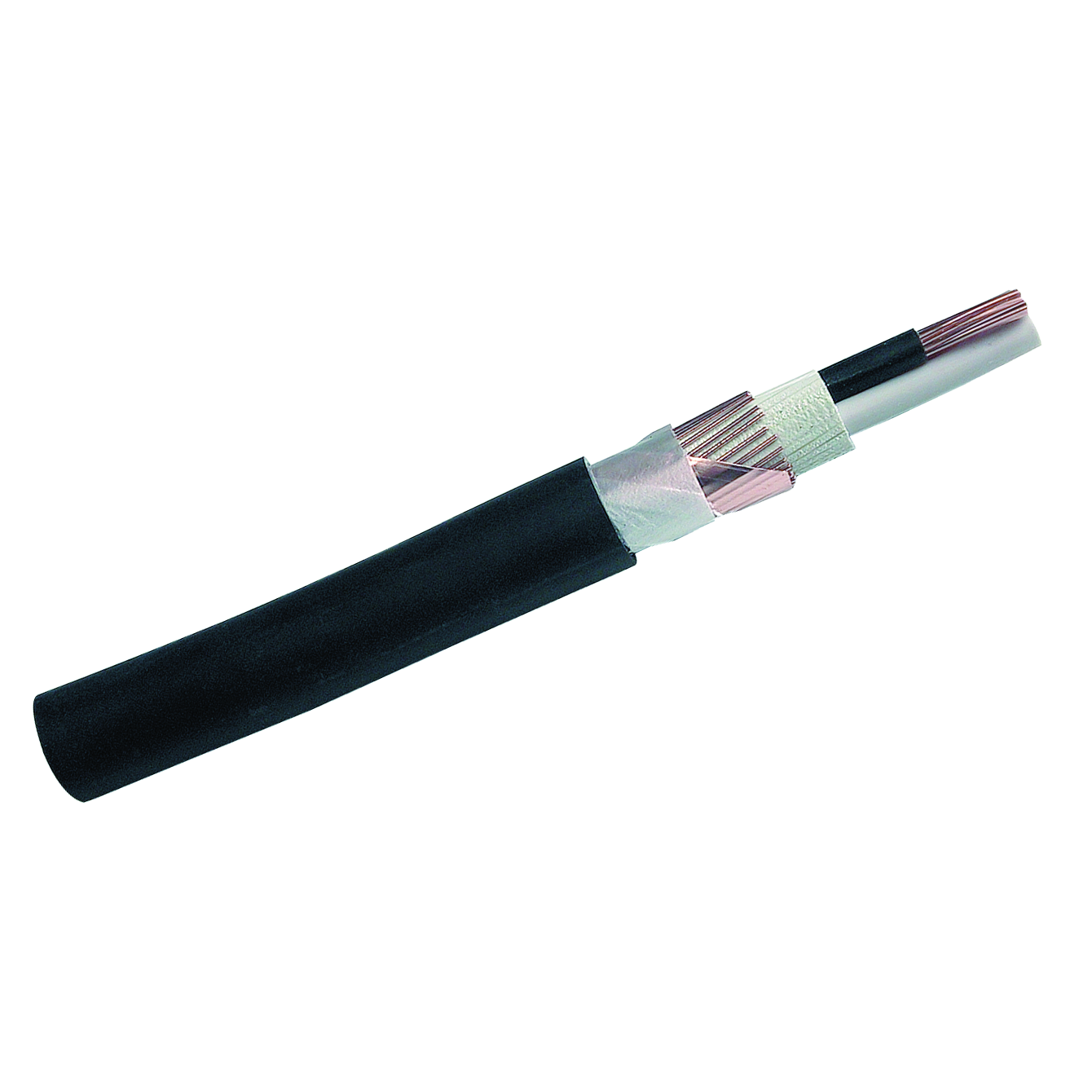

COPPER POWER CABLE-HF EMC MCMK HF EMC 1 kV 3X95/50 Dca
Product code
0622828
No product description available.
Product details
Technical specifications
Product class (ETIM)Power cable >= 1 kV, for permanent installation (EC003251)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor95 mm²
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.193 Ohm/km
Shape of conductorSector-shaped
Number of cores4
Material core insulationOther
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2yes
Core identificationColour
Laminated sheathno
Fibre optic elementsno
With protective conductoryes
Inner semi-conducting layerno
Product codes
SAPCDY028
STK0622828
PLC0622828
GTIN/EAN7330000076815
Manufacturer part number15142598-201-05
Vendor material number0622828
Basic information
Package measurements (L x W x H)1000 x 35 x 35 mm
Package volume1.225 l
Package weight3.48 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121629
BrandNEXANS
VendorNEXANS SWEDEN AB
Documents (2)
Certificates
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
