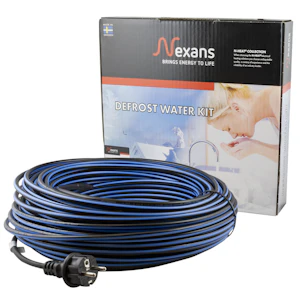

FROST PROTECTION CABLE WATER KIT 550W 50M
Product code
8112972
The Defrost Water Kit is a ready-to-connect heating cable that protects water pipes from freezing. It can be installed inside or outside the pipes. Self-regulating cable is supplied in pre-cut lengths. The package includes a lead, plug, warning sign, and operating instructions in a convenient transportable package.
The delivery includes a thawing cable and a 2-meter connecting cable.
Features- Food-grade approved: suitable for installation in pressurized drinking water pipes
- Environmentally friendly: halogen-free, PVC-free, and lead-free
- Ready to use: includes a pre-installed connecting cable (H05RN-F) and plug (suko)
- Heating capacity of 11 W/m measured at +5 °C ambient temperature
- Available in lengths of 3, 5, 7, 10, 15, 20, and 25 meters with a 1.5 m connecting cable, and 35, 50, and 60 meters with a 2 m connecting cable
Note! If the cable is installed inside the water pipes, an installation kit with a watertight gland as an accessory is required.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Trace heating cable (EC000339)
Cable typeDual core
Nominal voltage230 V
Max. hold temperature60 °C
Heating capacity11 W/m
Diameter7 mm
Height7 mm
Width7 mm
Length50 m
ColourBlack
ApplicationPipe heating
Product codes
SAPCLU249
STK8112972
PLC8112972
GTIN/EAN7340074402359
Manufacturer part number13555009
Vendor material number8112972
Basic information
Package measurements (L x W x H)380 x 380 x 125 mm
Package volume18.05 l
Package weight3.3 kg
Base uniteach
Package units1 / 30
Package contents–
UNSPSC40101851
BrandNEXANS
VendorAXJO KABEL AB
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
