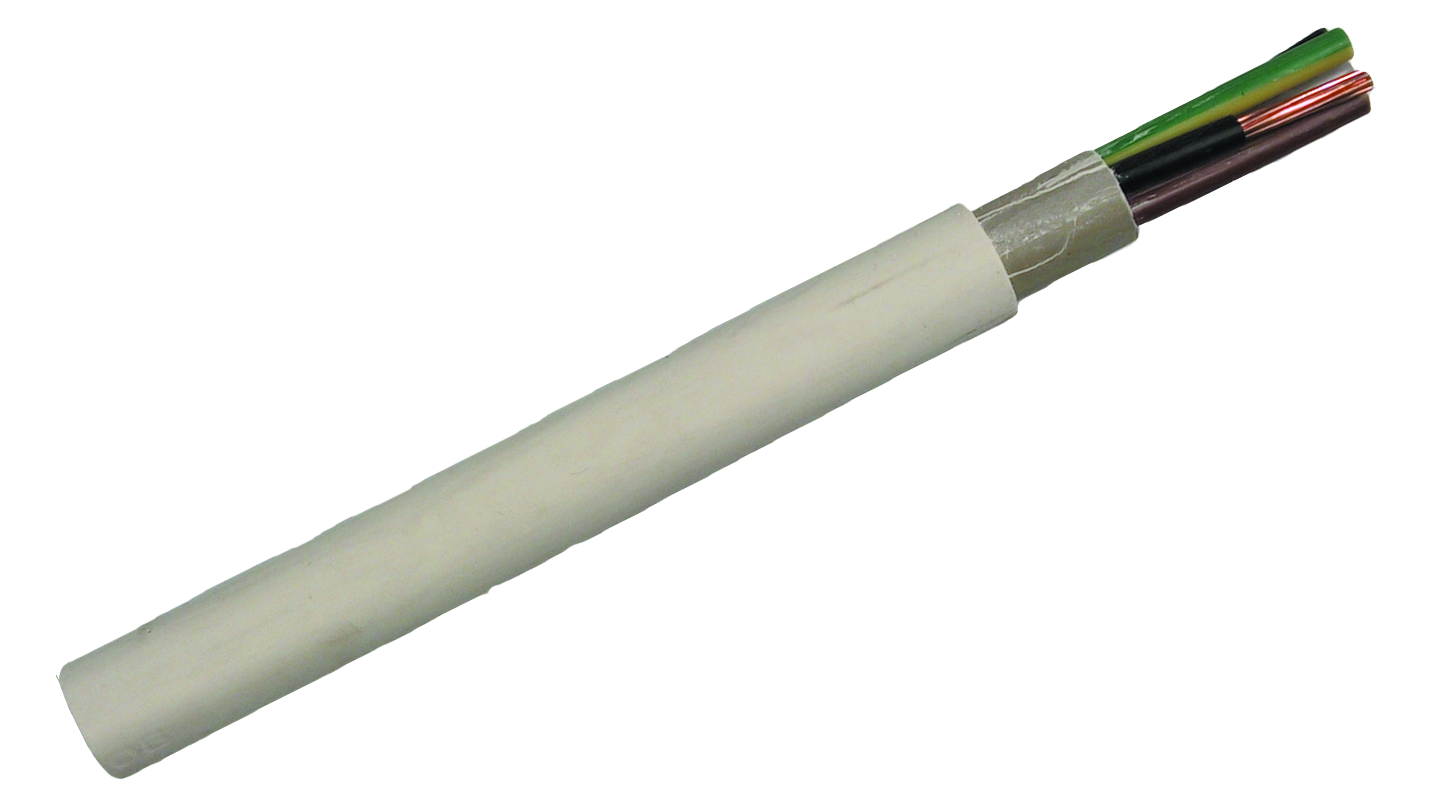

INSTALLATION CABLE-HF MMJ HF / FQQ 5G6
Product code
0406644
No product description available.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Nominal cross section conductor6 mm²
Conductor categoryClass 2 = stranded
Number of cores5
Material core insulationPolyolefin
Core identificationColour
Max. permitted conductor temperature70 °C
Armouring/reinforcementNone
Material outer sheathPolyolefin
Colour outer sheathWhite
Outer diameter approximate15.5 mm
Nominal voltage U0300 V
Nominal voltage U500 V
Product codes
SAPAEC417
STK0406644
PLC0406644
Manufacturer part number14017998
Vendor material number0406644
Basic information
Package measurements (L x W x H)1000 x 15 x 15 mm
Package volume0.225 l
Package weight0.535 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121500
BrandNEXANS
VendorNEXANS SWEDEN AB
