N-COMFORT TD+ AXJO KABEL N-COMFORT TD+

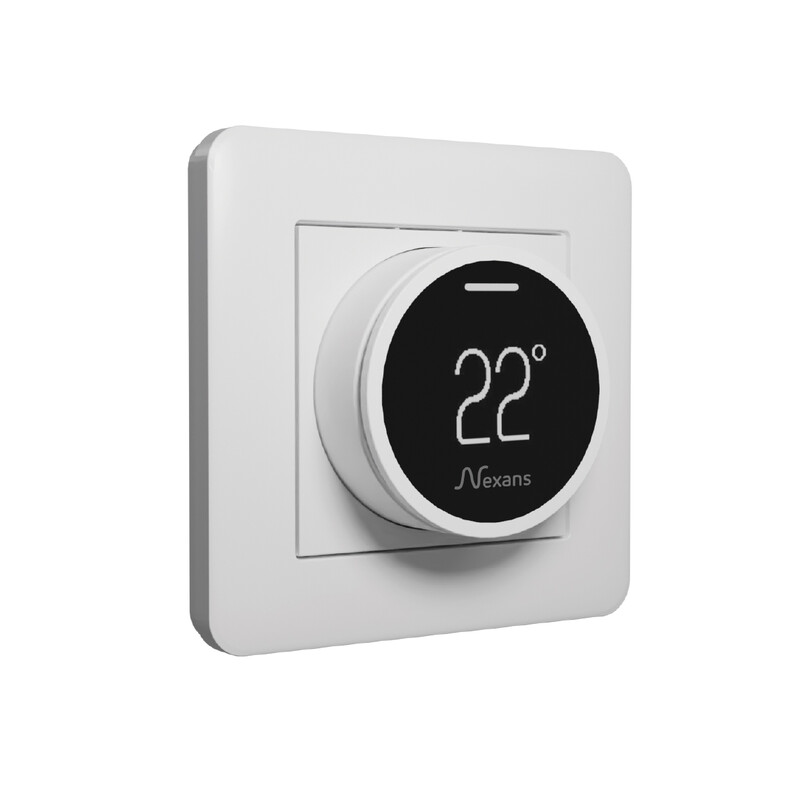

This new and unique Nexans thermostat is equipped with an LED display and is Bluetooth and Ecodesign certified. The thermostat is configured via the N-Comfort app, which can be downloaded from Google Play or the App Store.

Installation does not require separate programming. Upon first startup, the thermostat detects whether a floor or room sensor is connected, adapts accordingly, and selects the pre-programmed default settings in the thermostat.

Basic Operation

• The thermostat is controlled using a rotating knob (C°) and a touch button (SET).
• Basic operation is described on the first page, see figure END USER FUNCTIONS.

Full Operation

The user can monitor the room’s latest temperatures and energy consumption via the N-Comfort app (Android and iOS mobile devices). The app also allows adjustment of all settings (e.g., changing floor sensor values) and the creation of a weekly schedule (night/day settings). The app can generate reports that can be sent via email. Additionally, it includes built-in user instructions. When the thermostat is connected to the app, the Nexans logo is displayed.

Features

• Bluetooth: version 4.2
• Operating voltage: 230 V - 50 Hz
• Maximum load: 16 A
• Operating temperature: +5 - +35 °C
• External control: 230 V - 50 Hz
• IP rating: IP21
• Color: white
• Sensors: internal room sensor, external floor sensor NTC
• Ability to connect an external wireless sensor (Bluetooth)

This product description is an automated translation of the original Finnish description.
