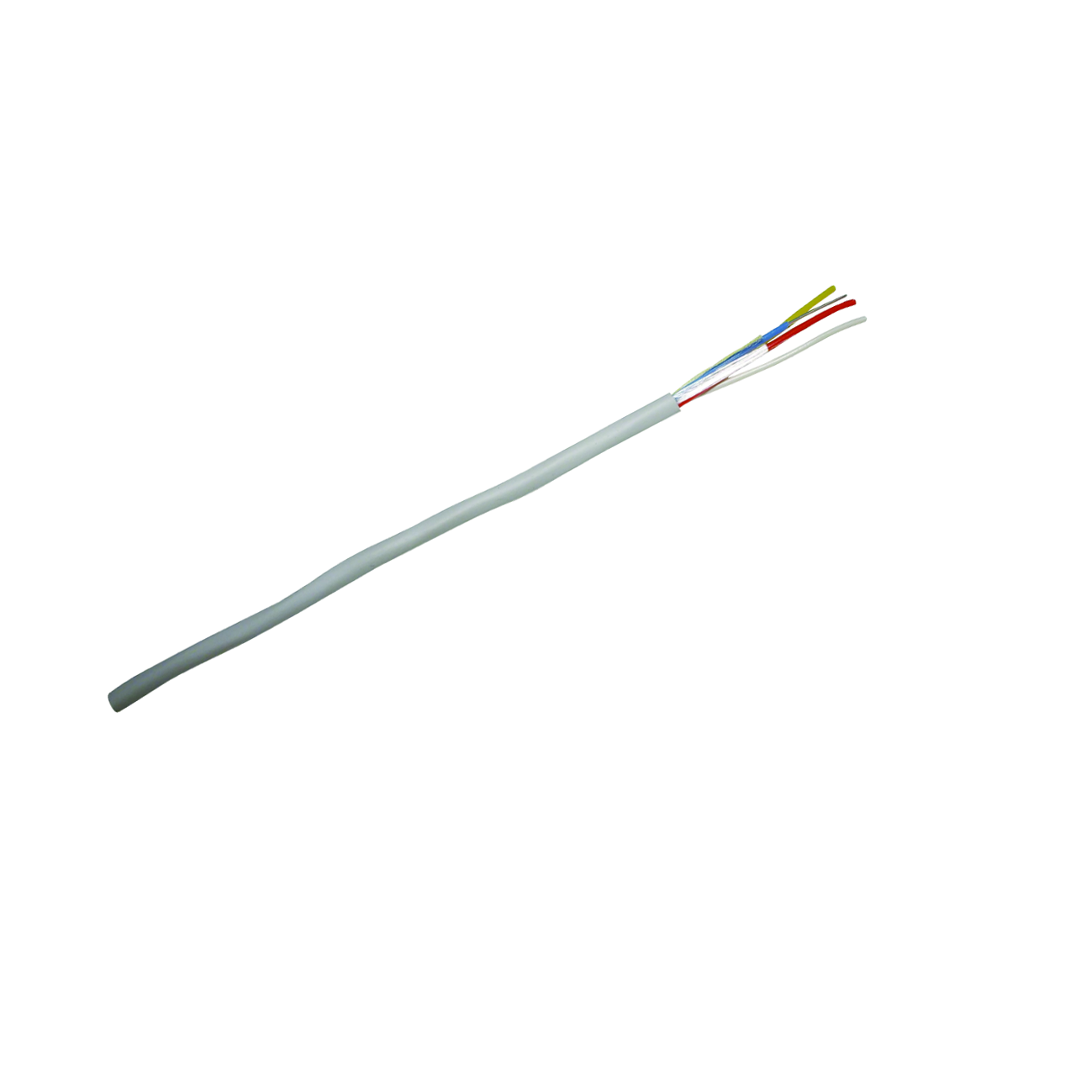

SIGNAL CABLE-HF KLM LSZH 4x0,8 Dca R150
Product code
0233368
KLM LSZH is used as a signaling cable in various control and regulation devices. Meets CPR Dca-s2,d2,a2 fire requirements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Data and communication cable (EC003249)
Conductor materialCopper
Conductor surfaceTinned
Diameter conductor0.8 mm
Conductor categoryClass 1 = solid
Number of cores4
Number of stranding elements1
Stranding elementNo
Material core insulationPolyolefin
Specification core insulationPolyethylene (PE)
Core identification according to HD 308 S2yes
Core identificationColour
Screen over stranding elementNone
StrandingBundle
Screen over strandingNone
Longitudinal water blocking cableno
Product codes
SAPCEA980
STK0233368
PLC0233368
GTIN/EAN7330000114869
Manufacturer part number37160443-907-19
Vendor material number0233368
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.073 l
Package weight0.036 kg
Base unitMeter
Package units150 / 5400
Package contents–
UNSPSC26121609
BrandNEXANS
VendorNEXANS SWEDEN AB
Documents (2)
Certificates
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
