TELECOM CABLE CANAL/GROUND VMOHBU-TL 5X2X0,5 K7
Product code
0235802

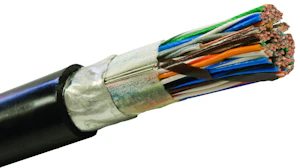

The cable is twisted pair, grease-filled, shielded, and equipped with a PE outer sheath. VMOHBU-TL complies with the SFS5012 standard. The a-wire of each pair is marked with the color of the b-wire to facilitate pair identification during installation. The cable is installed outdoors in ducts or directly into the ground, and indoors for a maximum of 5 m for termination or continuation. VMOHBU-TL cable is used for telephone and digital communication (XDSL) in subscriber networks. The outer sheath is marked with, for example, “VMOHBU-TL 10x2x0.5 Nexans GS” followed by year, month, and meter markings. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Data and communication cable (EC003249)
Conductor materialCopper
Conductor surfaceBare
Diameter conductor0.5 mm
Conductor categoryClass 1 = solid
Number of cores10
Number of stranding elements5
Stranding elementNo
Material core insulationPolyolefin
Specification core insulationPolyethylene (PE)
Core identification according to HD 308 S2yes
Core identificationColour
StrandingBundle
Screen over strandingFoil
Longitudinal water blocking cableyes
Radial water blocking cableyes
Product codes
SAPAEP217
STK0235802
PLC0235802
GTIN/EAN7330000015340
Manufacturer part number38607298
Vendor material number0235802
Basic information
Package measurements (L x W x H)1000 x 10 x 10 mm
Package volume0.1 l
Package weight0.09 kg
Base unitMeter
Package units1 / 1000 / 1000
Package contents–
UNSPSC26121609
BrandNEXANS
VendorNEXANS SWEDEN AB
Documents (5)
Environment and safety
Features
Made from PVCNo
Halogen freeYes
