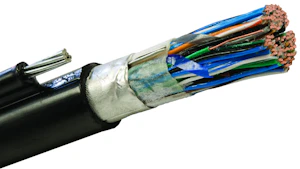

TELECOMMUNICATIONS CABLE AIR VMOHBUK-TL 10X2X0,5 K11
Product code
0235853
The cable is twisted pair, grease-filled, shielded, with a PE outer sheath and a support cord. VMOHBUK-TL complies with the SFS5012 standard. The a-conductor of each pair is marked with the color of the b-conductor to facilitate pair identification during installation. The cable is installed outdoors to poles and indoors for a maximum of 5 m for termination or continuation. VMOHBUK-TL cable is used for telephone and digital communication (XDSL) in subscriber networks. The outer sheath is marked with, for example, “VMOHBUK-TL 10x2x0.5 Nexans GS” followed by year, month, and meter marking. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Data and communication cable (EC003249)
Number of cores20
Suitable for underground installationno
Colour outer sheathBlack
Reaction-to-fire according to EN 13501-6: ClassNone
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
Reaction-to-fire according to EN 13501-6: AcidityNone
Outer diameter approximate11.5 mm
Product codes
SAPAEP226
STK0235853
PLC0235853
GTIN/EAN6410002358537
Manufacturer part number38625398
Vendor material number0235853
Basic information
Package measurements (L x W x H)1000 x 20 x 10 mm
Package volume0.2 l
Package weight0.224 kg
Base unitMeter
Package units1 / 1000 / 1000
Package contents–
UNSPSC26121609
BrandNEXANS
VendorNEXANS SWEDEN AB
Documents (5)
Environment and safety
Features
Made from PVCNo
Halogen freeYes
