HEATPUMP NIBE SPLIT 6 AIR TO WATER

Product code
5362945

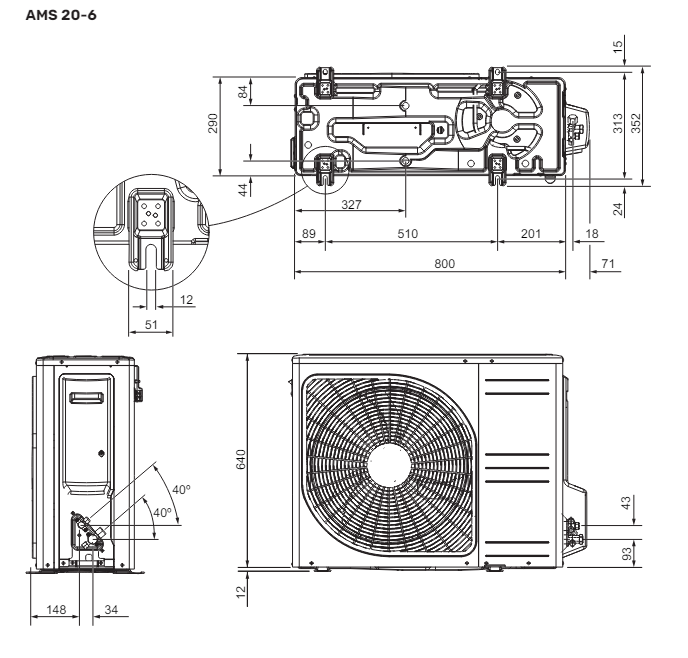

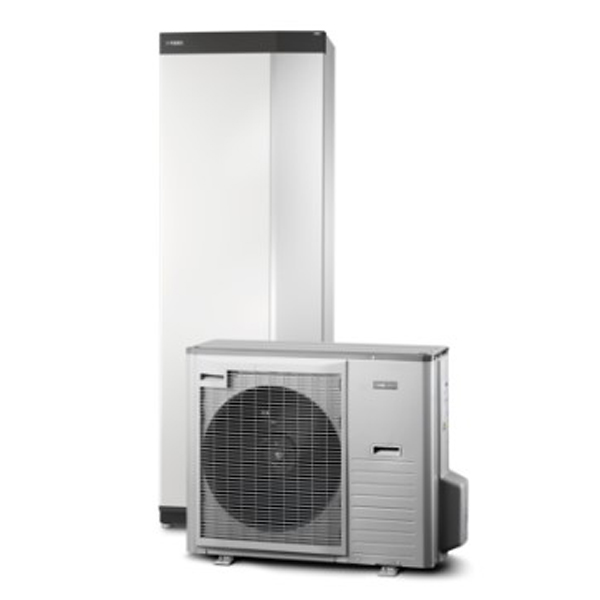

NIBE SPLIT is a smart and compact air-to-water heat pump package from the NIBE S series, efficiently heating and producing domestic hot water for both new and older single-family homes. The complete heating system includes the NIBE AMS 20 outdoor unit and the NIBE SVM S332 indoor unit, along with a ground stand for the outdoor unit. The system delivers optimal savings by automatically adapting to the home’s energy needs throughout the year. With the MyUplink service, you can incorporate weather forecasts into heating control, enable grid electricity optimization, and achieve even smarter room temperature regulation. The system can be expanded with options such as a ventilation unit, solar power system, and cooling. Integrated smart load management is provided by the included current sensors. We also recommend the KVR12 condensate drain pipe accessory. Built-in Wi-Fi and the ability to connect to smart wireless accessories make the NIBE S series a natural part of your connected home. Smart control automatically adjusts heat production and allows you to fully monitor the system via smartphone or tablet. Enjoy high comfort and low energy consumption while also benefiting the environment. Additional accessories:
  • ACS 310 cooling add-on card
  • AXC 30 add-on card
  • AXC 40 (LVI 5361639) accessory card
  • EME 20 (LVI 5362903) solar power module
  • ECS 40 (LVI 5361542) shunt group
  • ELK 9 (LVI 5069007) electric boiler
  • HR 10 (LVI 5361563) auxiliary relay
  • KVR 12-10 (LVI 5362955) condensate drain pipe
  • KVR 12-30 (LVI 5362956) condensate drain pipe
  • KVR 12-60 (LVI 5362957) condensate drain pipe
  • POOL 310 swimming pool heating
  • NIBE PV, RMU S40 (LVI 5362080) wireless control panel
  • Underfloor cooling set (LVI 5362089)
  • Shunt package 25-10 (LVI 5362043).
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Heat pump (air/water) split type (EC012035)
ModelComplete
Heating capacity at 7/35 °C according to EN 145112.64 kW
COP at 7/35 °C according to EN 145115.42
Suitable for additional heating central heatingyes
Max. pipe length30 m
Room temperature controlyes
Type of regulationWeather-dependent control
Kind of optimizationSpace sensor
External controller requiredyes
Suitable for hot tap wateryes
Suitable for active coolingyes
Cooling integratedno
Cooling performance at 35/18 °C according to EN 145110 - 7.55 kW
Cooling performance at 35/7 °C according to EN 145110 - 5.32 kW
Suitable for swimming pool water heatingyes

Product codes

SAPDKQ697
HPAC5362945
PLC5362945
GTIN/EAN6429811025295
Manufacturer part number5362945
Vendor material number5362945

Basic information

Package measurements (L x W x H)1200 x 920 x 2270 mm
Package volume2506.08 l
Package weight245 kg
Base uniteach
Package units1
Package contents
UNSPSC40101806
BrandNIBE
VendorNIBE ENERGY SYSTEMS OY

Environment and safety

Manufacturer

NameNIBE Industrier AB
Postal addressHannabadsvägen 5, SE 285 21 Markaryd
