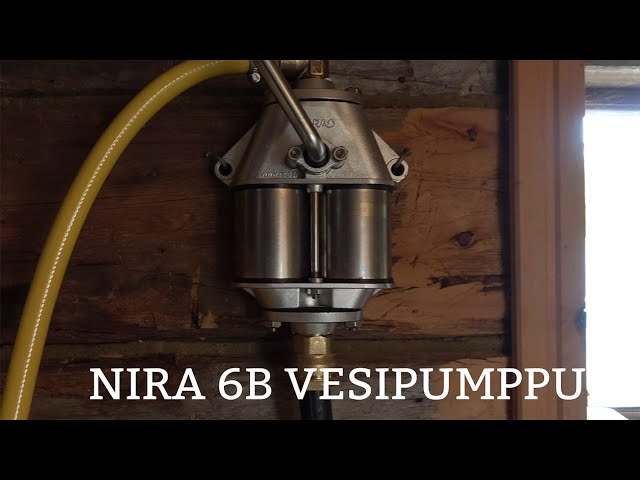

PUMP NIRA 1 NIRA 6B 1101

Mainly stainless steel hand pump with nitrile seals, suitable for pumping oil, glycol, and household water. Excellent for summer cottage use as a sauna water pump or for oil tanks. This pump has an upward-facing handle; the handle direction cannot be adjusted after purchase.

The pump is delivered in a cardboard box. This pump has 1-inch threaded connections, but it is also available with 3/4-inch connections (product 4713502).

This pump is not recommended for drinking water, as it does not self-drain after use, leaving water inside the pump. Therefore, if the Nira 6B pump is used for household water pumping and stored in a location where freezing is possible, the pump must be emptied of water before freezing conditions occur.

Features

• Maximum output of approximately 40 liters per minute
• Suction height of 4 m, 8 m with foot valve
• Internal thread on connections: 3/4” or 1”, specify when ordering
• Pressure resistance up to approximately 3 bar momentarily
• Weight: 3.3 kg

Installation

When installing the pump, note that the length of the suction pipe affects the pump’s maximum suction height. With a foot valve, the suction height is 8 meters; without a foot valve, it is 4 meters. A standard P 1” (32 mm) pipe is typically used as the suction pipe, with the foot valve installed at its end. Garden hose is unsuitable as a suction pipe because it is too soft and the pump’s suction will collapse it.

The Nira 6B can withstand momentary pressure of approximately 3 bar. The pump must not be installed in a system where it is continuously under pressure. When connecting the pump to a fuel tank, ensure the tank cannot empty by itself (siphoning effect).

This product description is an automated translation of the original Finnish description.
