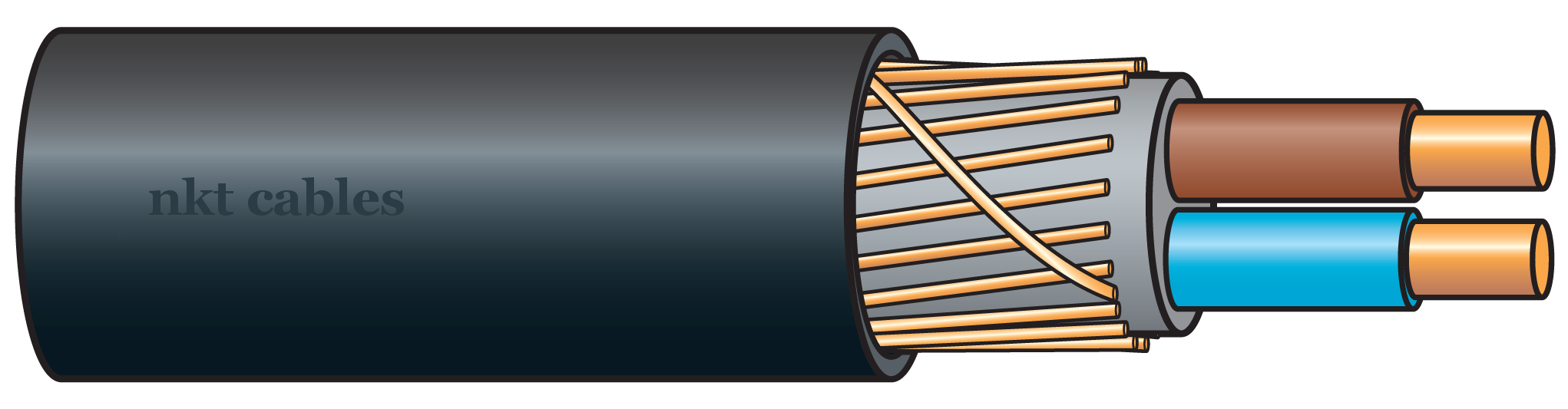

COPPER POWER CABLE EKKJ 2X2.5/2.5 0.6/1KV /150 B
Product code
0629072
No product description available.
Product details
Technical specifications
Product class (ETIM)Power cable >= 1 kV, for permanent installation (EC003251)
Conductor materialCopper
Nominal cross section conductor2.5 mm²
Conductor categoryClass 1 = solid
Shape of conductorRound
Number of cores2
Screenyes
Concentric conductorCopper
Material outer sheathPolyvinyl chloride (PVC)
Colour outer sheathBlack
Reaction-to-fire according to EN 13501-6: ClassEca
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
Reaction-to-fire according to EN 13501-6: AcidityNone
Outer diameter approximate11.3 mm
Nominal voltage U00.6 kV
Product codes
SAPAMJ046
STK0629072
PLC0629072
GTIN/EAN7394479004885
Manufacturer part numberTEK420354
Vendor material numberTEK420354
Basic information
Package measurements (L x W x H)1000 x 18 x 18 mm
Package volume0.352 l
Package weight0.2 kg
Base unitMeter
Package units150 / 900 / 1800
Package contents–
UNSPSC26121629
BrandNKT
VendorNKT SWEDEN AB
