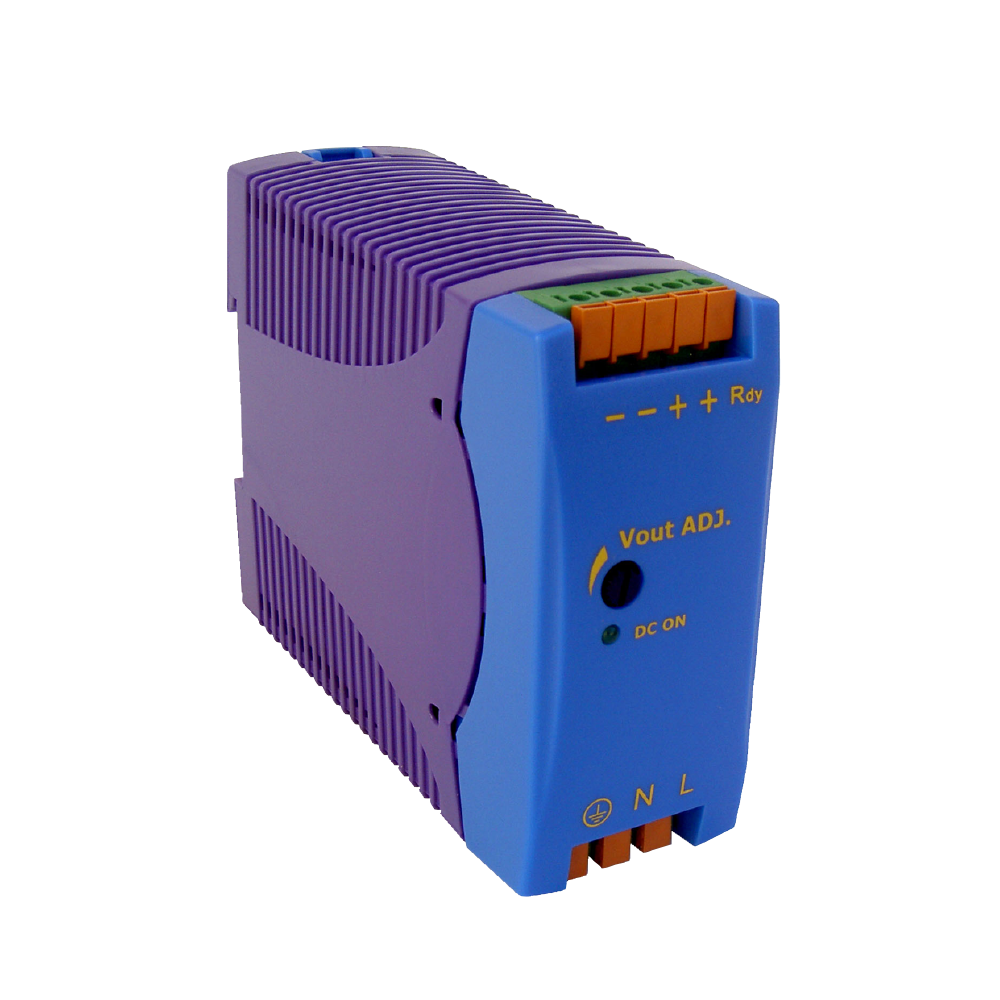

SWITCH MODE POWER SUPPLY DRA10-12 10W 0,84A RIPPLE<0,5%
Product code
8471558
Type DRA – Stabilized DC power supply, max. 0.5% ripple, IP20
Stabilized DC power supply based on switching technology. The DRA series is compact, featuring high efficiency and low ripple. Wide primary voltage range and option for output voltage adjustment. Electronically protected against overload and short circuit. Easy «snap-on» mounting to 35mm DIN rail. The series is specifically designed for industrial control systems, process automation, and automation applications (*115/230 VAC). This product description is an automated translation of the original Finnish description.
Stabilized DC power supply based on switching technology. The DRA series is compact, featuring high efficiency and low ripple. Wide primary voltage range and option for output voltage adjustment. Electronically protected against overload and short circuit. Easy «snap-on» mounting to 35mm DIN rail. The series is specifically designed for industrial control systems, process automation, and automation applications (*115/230 VAC). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)DC-power supply (EC002540)
Voltage type (supply voltage)AC
1st secondary output voltage12-12 V
Max. output current 10.84 A
Secondary voltage adjustableyes
Rated supply voltage AC 50 Hz90-265 V
Stabilizedyes
Type of electric connectionScrew connection
Suitable for rail mountingyes
Product codes
SAPALO754
STK8471558
PLC8471558
GTIN/EAN5703451011483
Manufacturer part number3-097-000006
Vendor material number3-097-000006
Basic information
Package measurements (L x W x H)115 x 23 x 90 mm
Package volume0.238 l
Package weight0.12 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121004
BrandNORATEL
VendorNORATEL FINLAND OY
