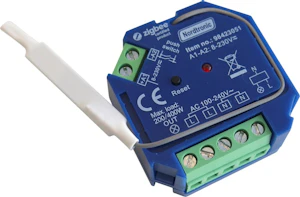

CONTROL UNIT BOX RELAY ZIGBEE 400W 100-240V 2.4GHZ ZIGBEE
Product code
2606302
Features
- Zigbee relay is based on the latest Zigbee 3.0 protocol
- On/off relay: LED 0-200 W / halogen 0-400 W
- Input and output with screw terminals, safe and reliable
- Compatible with standard Zigbee gateway products
- Can be controlled by a universal 8-230 V single-wire push button
- Radio frequency: 2.4 GHz
- Compact size, easy to install in a standard 86 x 86 mm wall box
- Do not expose the device to moisture
- Do not install the device while it is connected to mains power
Product details
Technical specifications
Product class (ETIM)Controller for luminaires (EC002924)
Suitable for outdoor useno
Operating methodZigbee
Programmableyes
HousingPlastic housing
DIN-rail mountingyes
Input voltage100-240 V
Max. output current1.8 A
Degree of protection (IP)IP20
Protection class according to IEC 61140I

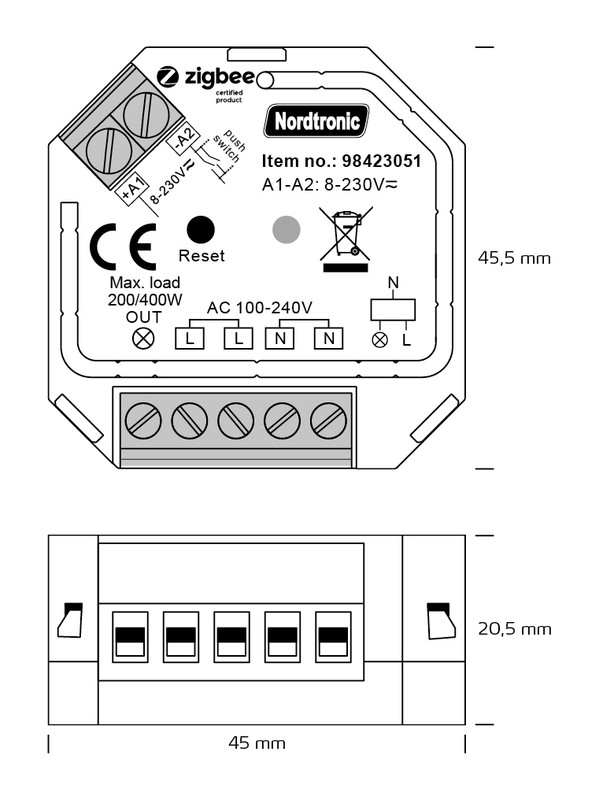

Length45 mm
Width45 mm
Height20.5 mm
Compatible with Apple HomeKityes
Compatible with Google Assistantyes
Compatible with Amazon Alexayes
Product codes
SAPDAW042
STK2606302
PLC2606302
GTIN/EAN5704629000940
Manufacturer part number98423051
Vendor material number2606302
Basic information
Package measurements (L x W x H)55 x 35 x 55 mm
Package volume0.106 l
Package weight0.04 kg
Base uniteach
Package units1 / 200
Package contents–
UNSPSC39111541
BrandNORDTRONIC
VendorNORDTRONIC A/S
