DOWNLIGHT UNI INSTALL G2 INDOOR TILT 30D IP21 GU10 BA R
Product code
4134483
Features
- Manufactured from at least 85% recycled materials
- Approved for direct installation onto insulation and combustible materials

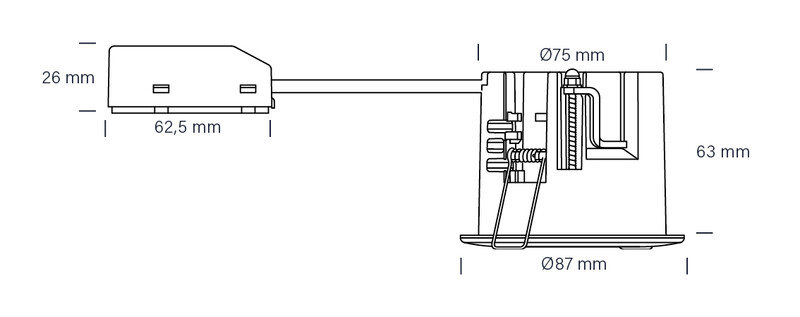

- Low installation depth - 63 mm
- Fast and easy installation with screws or adjustable springs

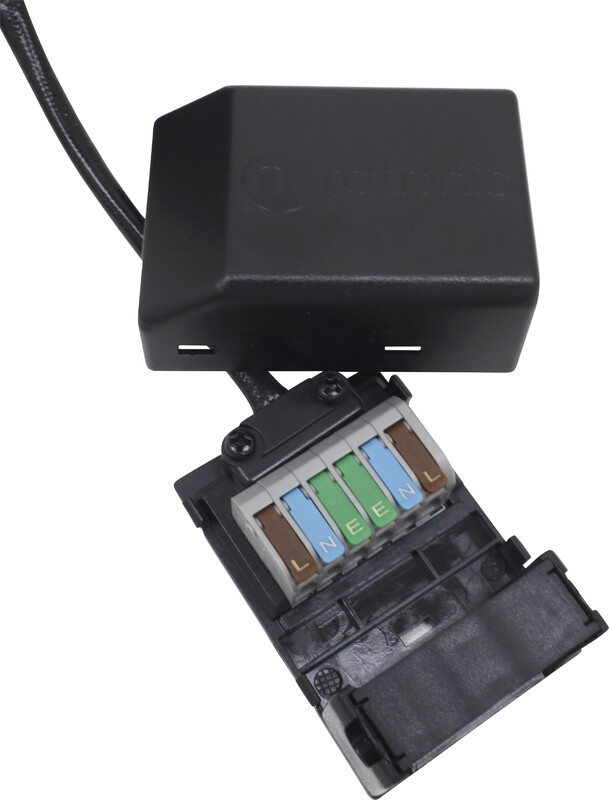

- 3-pole levers in the connection box
- Option to secure with cable or 16 mm flexible conduit
- Adjustable springs up to roof thickness of 44 mm
- Adjustable screws up to roof thickness of 35 mm
- 10-year warranty
- Part of Nordtronic's Ensurity concept
Nordtronic Uni Install G2 is coated for indoor and outdoor use in black and white. Brushed aluminum versions are available separately for indoor and outdoor use.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingno
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
AdjustabilitySwivelling
Lamp typeLED exchangeable
With light sourceyes
Suitable for number of light sources1
Lamp holderGU10
Housing materialAluminium
Product codes
SAPDBZ518
STK4134483
PLC4134483
GTIN/EAN5704629005419
Manufacturer part number12220000
Vendor material number4134483
Basic information
Package measurements (L x W x H)120 x 110 x 80 mm
Package volume1.056 l
Package weight0.231 kg
Base uniteach
Package units1 / 45 / 900
Package contents–
UNSPSC39111544
BrandNORDTRONIC
VendorNORDTRONIC A/S
Documents (6)
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.003
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
