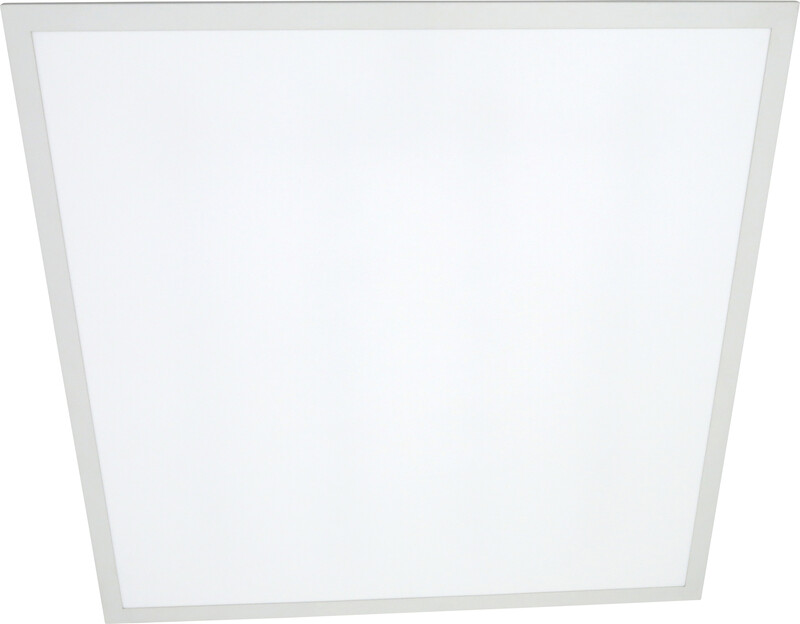

MODULAR LUMIN.ECOTECH PANEL IP20 4000LM 40W 840 WH 600X600
Product code
4134485
ECOtech Panel is part of Nordtronic's new ECOtech concept, offering products at an extremely competitive price without compromising on specifications. The products feature better qualities than one would expect from their price, whether in terms of technical data, service life, warranty, or functionality. Nordtronic's ECOtech panels are an ideal lighting solution when bright and uniform light is required, both at home and in the office. The panels can be installed directly into suspended T-grid ceilings, recessed using springs (4134487), or surface-mounted with a surface-mount frame (4134486).

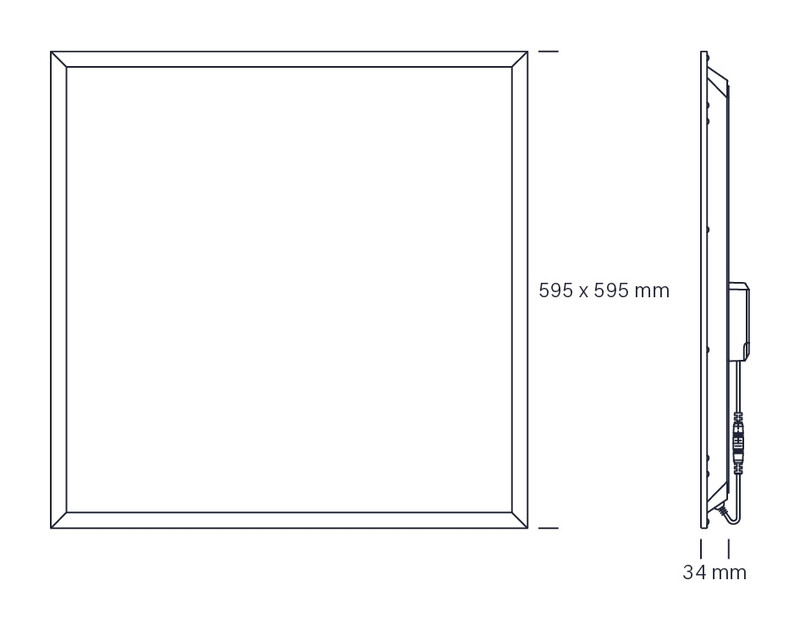

- 595 x 595 mm
- 40W
- 100lm/W
- 4000K
- UGR<22
- service life 50,000 h
- warranty 5 years
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for clamp-mountingno
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialSteel
Housing colourWhite
Material coverPlastic, opal
Nominal voltage220 - 240 V
With control gearyes
Product codes
SAPDFP357
STK4134485
PLC4134485
GTIN/EAN5704629006249
Manufacturer part number38602034
Vendor material number4134485
Basic information
Package measurements (L x W x H)610 x 655 x 42 mm
Package volume16.781 l
Package weight1.74 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39111544
BrandNORDTRONIC
VendorNORDTRONIC A/S
