HAMMER-IN BRACKET 10-P-25P
Product code
1306461
Letti 10-R-25P white fitting for surface mounting of cables. Size Ř 10 mm, 25 mm leg. With electro-galvanized and plastic-coated Letti fittings, you achieve a clean installation and optimal corrosion protection in most environments. The fitting can also be used outdoors, in damp areas, and in agricultural buildings. The fitting is suitable for halogen-free installations. The fitting is electro-galvanized and plastic-coated, ensuring excellent corrosion resistance. The plastic resists most alkaline substances and solvents.

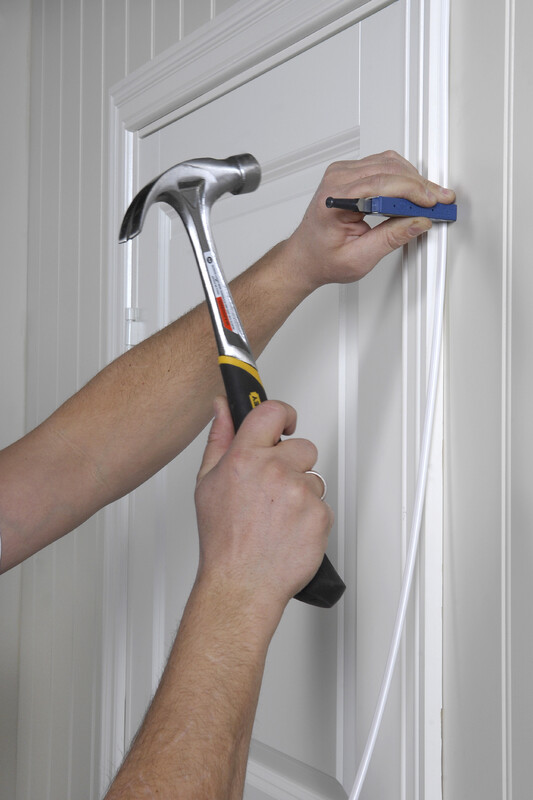

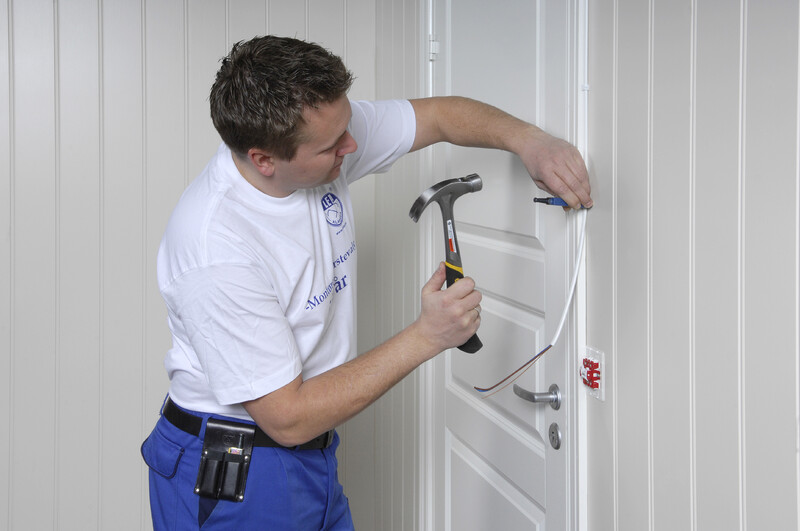

The fitting is secured using the Letti 10 tool S-1306470. For installation on hollow walls, use the Letti PL5 plastic plug S-1311405.
- Fitting size Ř 10 mm
- Leg length 25 mm
- Pack size 200 pcs
- Color white RAL 9010
- Installation using Letti 10 tool S-1306470
- Installation on hollow walls using PL5 plug S-1311405
Product details
Technical specifications
Product class (ETIM)Cable clip (EC000363)
ShapeRound
Suitable for diameter10 - 10 mm
Width opening10 mm
Height opening10 mm
Double modelno
Pipe lockingno
Type of fasteningNail
With nailyes
Nail length25 mm
Hardened steel nailyes
With screwno
Fastening depth25 mm
MaterialSteel
Material qualityOther
Surface protectionGalvanic/electrolytic zinc plated
Product codes
SAPAOF996
STK1306461
PLC1306461
GTIN/EAN7394438500205
Manufacturer part number750020
Vendor material number1306461
Basic information
Package measurements (L x W x H)82 x 10.2 x 36.4 mm
Package volume0.03 l
Package weight0.002 kg
Base uniteach
Package units200
Package contents–
UNSPSC31161601
BrandNORWESCO
VendorNORWESCO AB
