HAMMER-IN BRACKET 8-R-16P
Product code
1306458
Letti 8-R-16P white clip for surface mounting of cables. Size Ř 8 mm, 16 mm leg. With electro-galvanized and plastic-coated Letti clips, you achieve a clean installation and optimal corrosion protection in most environments. The clip can also be used outdoors, in damp conditions, and in agricultural buildings. The clip is suitable for halogen-free installations. The clip is electro-galvanized and plastic-coated to ensure excellent corrosion resistance.

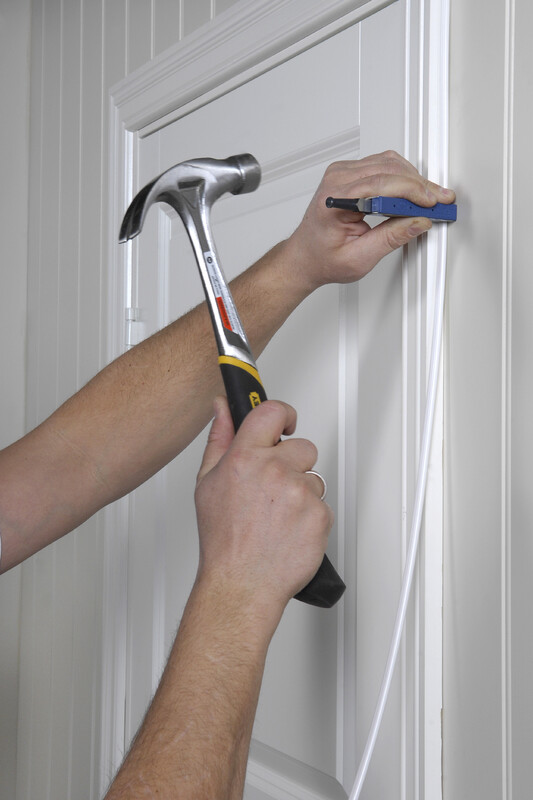

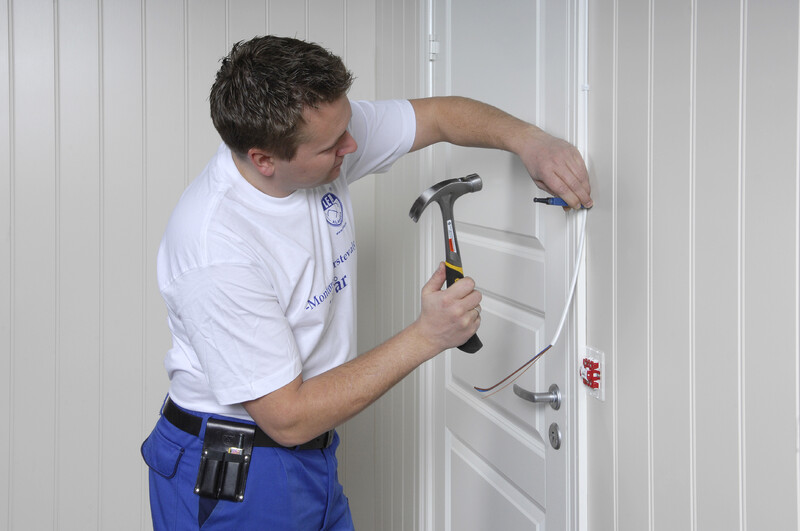

The plastic resists most alkaline substances and solvents. The clip is secured using the Letti 7-8 tool S-1306469. For installation on hollow walls, use the Letti PL5 plastic plug S-1311405.
- Clip size Ř 8 mm
- Leg length 16 mm
- Pack size 200 pcs
- Color white RAL 9010
- Installation with Letti 7-8 tool S-1306469
- Installation on hollow walls with PL5 plug S-1311405
Product details
Technical specifications
Product class (ETIM)Cable clip (EC000363)
ShapeRound
Suitable for diameter8 - 8 mm
Width opening8 mm
Height opening8 mm
Double modelno
Pipe lockingno
Type of fasteningNail
With nailyes
Nail length16 mm
Hardened steel nailyes
With screwno
Fastening depth16 mm
MaterialSteel
Material qualityOther
Surface protectionGalvanic/electrolytic zinc plated
Product codes
SAPAOF993
STK1306458
PLC1306458
GTIN/EAN7394438500175
Manufacturer part number750017
Vendor material number1306458
Basic information
Package measurements (L x W x H)25 x 10.2 x 24.1 mm
Package volume0.002 l
Package weight0.001 kg
Base uniteach
Package units200
Package contents–
UNSPSC31161601
BrandNORWESCO
VendorNORWESCO AB
