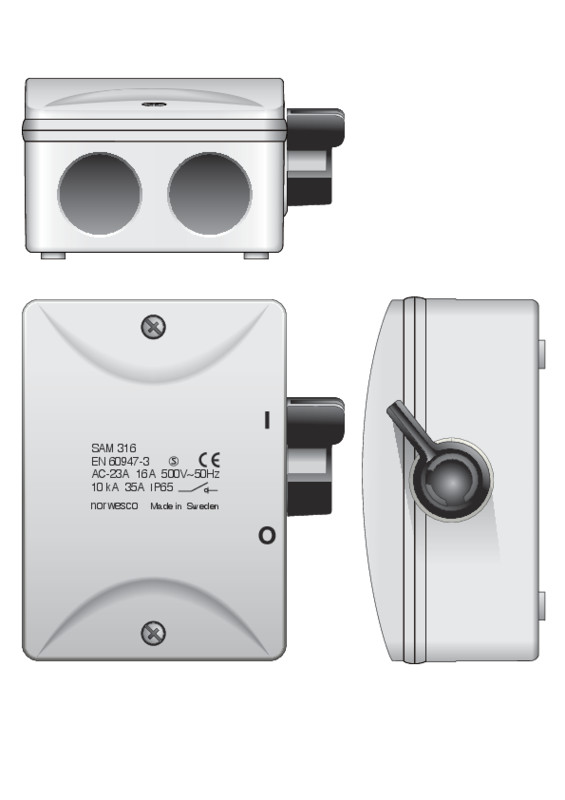

SAFETY SWITCH EMC SAM 316 3x16A 7,5kW IP65
Product code
3605357
Emergency stop switch EMC 3x16A 4xM25+1xM16 IP65 gray/black
Enclosed emergency stop switch compliant with IEC 60947-2 standard, suitable for use also as a load switch and isolator where required. Emergency stop switch marking provided as a separate label attached to the cover when used as an emergency stop switch. The switch is therefore also suitable for use as a load switch. Side-operated lockable lever.
Durable emergency stop switch designed for demanding conditions. Abundant space for wiring and connections inside. Two M25 entries on the top and two M25 and one M16 entries on the bottom. EMC gland seals 2xM25 and 1xM16, plus 2xM25 and 1xM16 plug caps are included in delivery. Housing color gray, lever color black.
Enclosed emergency stop switch compliant with IEC 60947-2 standard, suitable for use also as a load switch and isolator where required. Emergency stop switch marking provided as a separate label attached to the cover when used as an emergency stop switch. The switch is therefore also suitable for use as a load switch. Side-operated lockable lever.
Durable emergency stop switch designed for demanding conditions. Abundant space for wiring and connections inside. Two M25 entries on the top and two M25 and one M16 entries on the bottom. EMC gland seals 2xM25 and 1xM16, plus 2xM25 and 1xM16 plug caps are included in delivery. Housing color gray, lever color black.
- Housing made of gray-painted silumin
- Number of poles: 3+N+PE
- PE and N bars included
- Compliant labeling labels included
- Rated current 16A AC23A, 500V
- Rated power 7.5kW at 400V
- Protection class IP65
- Maximum conductor cross-section 6mm²
- Cable entries: 4xM25+1xM16
- Housing dimensions: 120x135x67mm (LxWxH)
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC500 V
Rated operating voltage400-500 V
Rated permanent current Iu16 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V16 A
Rated operation power at AC-3, 400 V7.5 kW
Rated operation power at AC-23, 400 V7.5 kW
Switching power at 400 V7.5 kW
Conditioned rated short-circuit current Iq10 kA
Product codes
SAPDCB398
STK3605357
PLC3605357
GTIN/EAN7394438051455
Manufacturer part number305145
Vendor material number3605357
Basic information
Package measurements (L x W x H)120 x 67 x 135 mm
Package volume1.085 l
Package weight0.75 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandNORWESCO
VendorNORWESCO AB
