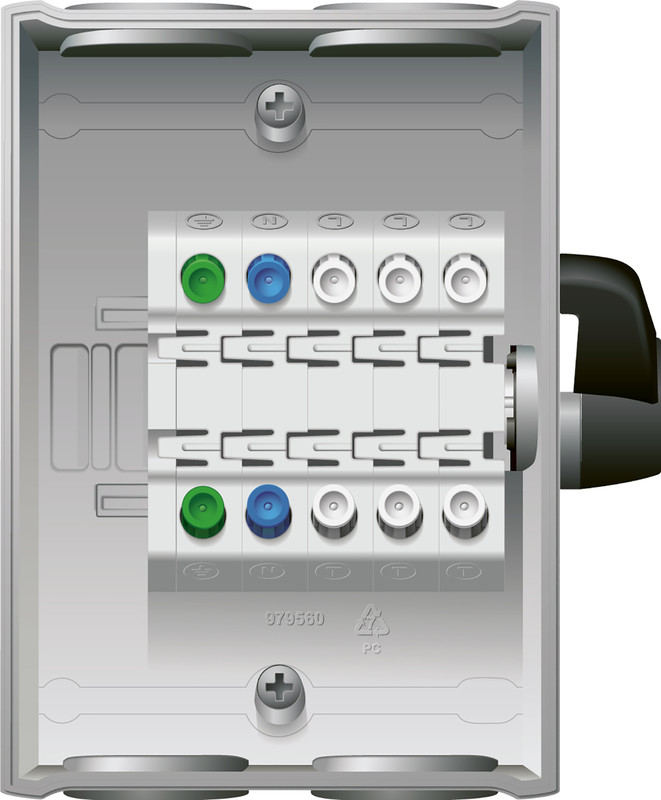

SAFETY SWITCH NORWESCO SAQ 216 2x16A 500V 7,5kW IP65

Spring terminal safety switch 2x16A 7.5kW 4xM25 IP65 gray/black. Enclosed safety switch compliant with IEC 60947-2 standard, suitable for use also as a load switch and isolator where required. Safety switch marking provided as a separate label to be attached to the cover when used as a safety switch. The switch is therefore also suitable for use as a load switch. Lockable lever operated from the side.

Advantages of spring terminals in safety switches compared to screw terminals:

• Faster and easier installation
• Significantly reduces the risk of loose connections
• Terminal size 6mm˛
• Terminals approved for all cable types without cable lugs
• Fast installation reduces installation costs
• Terminals do not require retightening
• In SAQ safety switches all poles, neutral and earth are aligned in the same row to facilitate wiring

Features

• Switch poles and N and PE terminals use spring terminals to speed up installation
• Enclosure made of impact-resistant polycarbonate
• Number of poles: 2+N+PE
• Compliant labeling labels included
• Rated current 16A AC23A, 500V
• Rated power 7.5kW at 400V
• Protection class IP65
• Maximum conductor cross-sectional area 6mm˛
• Cable entries 4xM25
• Two gray cable glands 2xM25 included in delivery
• Enclosure dimensions 106x129x62mm (LxWxH)

Two M25 entries are located on the top and bottom of the enclosure. Two gray cable glands 2xM25 are included in delivery. The enclosure color is gray, the lever color is black.

This product description is an automated translation of the original Finnish description.
